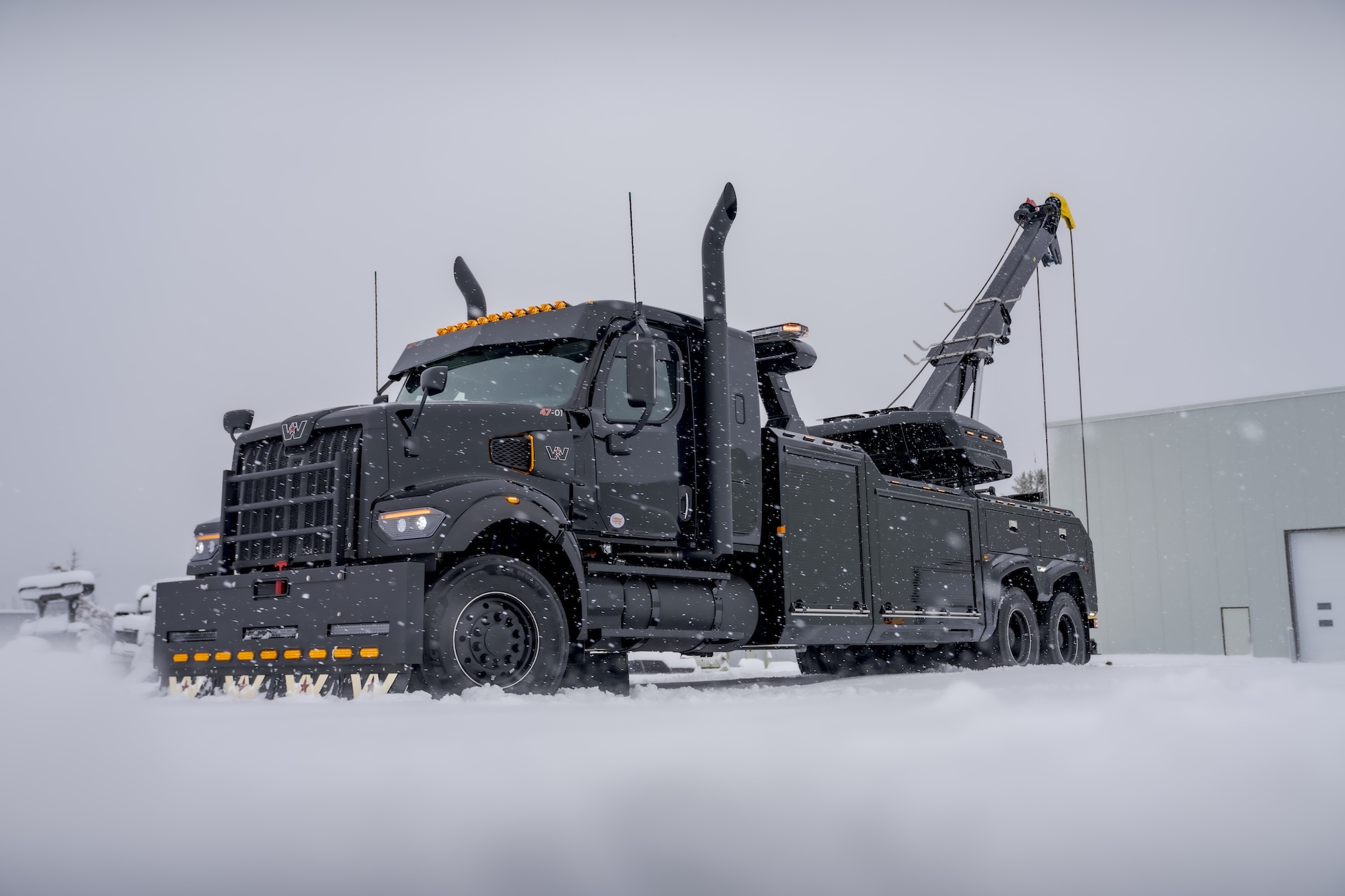

Designed to handle tougher recovery scenarios, the 50CS delivers increased lifting power and enhanced stability where it matters most. Its reinforced structure and optimized hydraulics provide the confidence to manage complex recoveries with control and precision. Built around operator efficiency and durability, the 50CS combines strength and responsiveness, making it a dependable tool for demanding recovery work in any environment.
50CS
Seize more opportunities.
-
-
Capacity
-
50 tons
-
-
-
Standard winches
-
50,000 lb
-
-
-
Boom reach
-
280''
-
- MOST POWERFUL IN ITS CATEGORY
- SLIDER® SYSTEM
- 50-Ton Rated liflting capacity
- 97'' Sliding recovery boom
- Working hydraulic pressure 3,000 psi
- Composite body 101,5'' wide (including fenders)
- Standard 2-stage V-shaped recovery boom
- Optional 3-stage V-shaped recovery boom
- Boom structural rating fully retracted: 100,000 lb (30 deg SAE J2512)
- Boom structural rating fully extended (2-stage): 40,000 lb (30 deg SAE J2512)
- Boom structural rating fully extended (3-stage): 20,000 lb (30 deg SAE J2512)
- Reach past tailgate (3-stage): 280"
- Maximum boom working height (3-stage): 410"
- Boom range of elevation: 0-59°

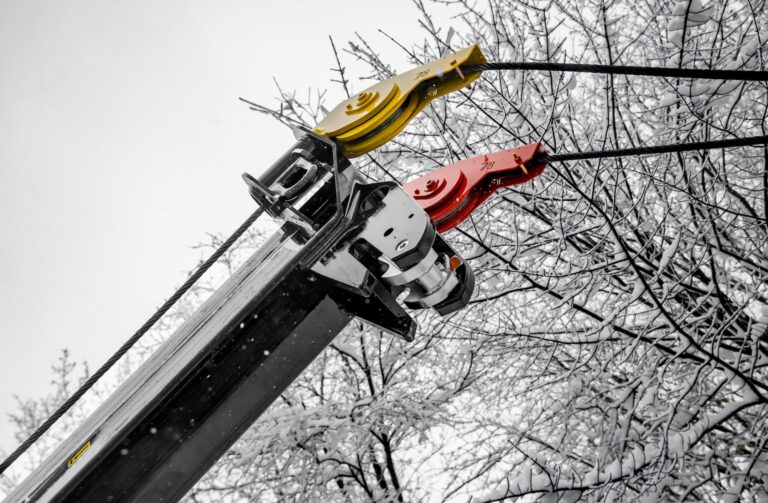

- 360° sheave head
- Dual 50,000 lb 2-speed planetary winches
- Wire ropes: 7/8" x 200'
- Air tensioners
- Air free spool
- Optional: dual 20,000 lb planetary auxiliary winches under the boom - 5/8'' x 200' wire ropes
- Optional: 50,000 lb planetary sliding drag winch - 3/4'' x 360' wire rope
- Tandem axle body
- Stylish monocoque corrosion resistant composite storage cabinets
- Air actuated sliding/rotating locks
- Lock & safety valve on elevation and extension cylinders
- Dual hydraulic controls with lighting
- Electric switches with rear controls
- 6 button wireless remote control
- 6 button CAN BUS keypad in the cab for lighting control
- Removable spades
- Rear mounted recovery anchors
- Mud flaps
- LED Lights
- Modular fork and accessory holders
- Emergency stop switches
- Epoxy primer
- Anodized aluminum roll-up doors
- Proportional joysticks
- Tri-axle body
- Fully proportional remote control with 2 batteries and charger
- 10/14-button wireless remote control
- Full width rear stabilizer with multi-function spades
- 5" color touch screen
- Scale system
- "L" shaped mounting plates 3/8"
- 3-stage HD/SHD Underlift
- 4-stage SHD Underlift
- Heavy duty tire lift
- Composite winch covers
- Large tunnel tool box (28" to 72")
- Composite battery box on top of tunnel
- Composite light pylon

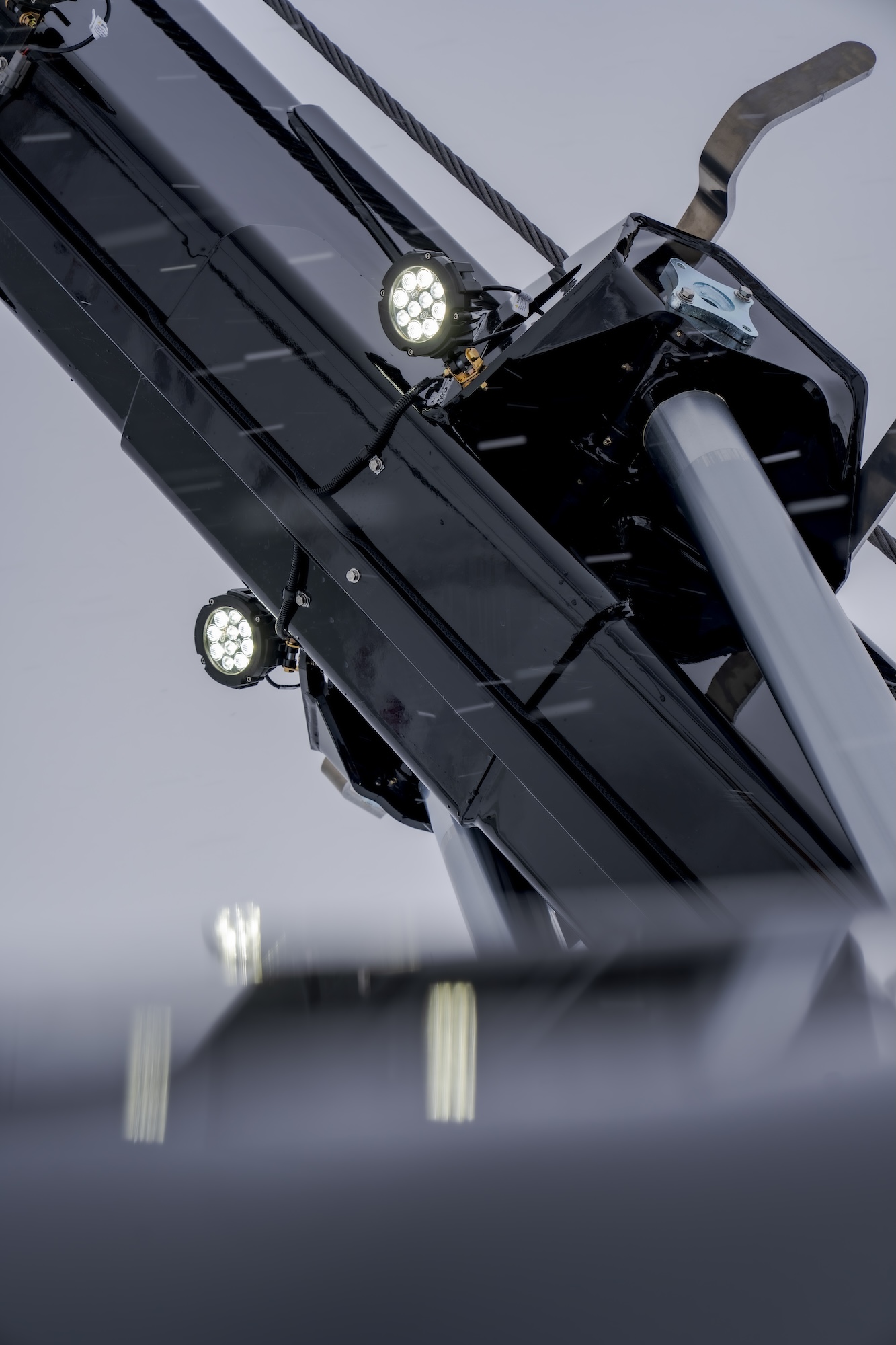

- Work lights under the boom
- Puddle lights
- 2 work lights under the bumper
- Stainless docking lights
- Lifting beam / spreader bars
- Configurable toolbox organizers
- Stainless dress-up kit
- Installation
- Custom paint
- Front axle: minimum 18,000 lb capacity
- Rear axles: minimum 46,000 lb capacity
- Minimum frame RBM: 3,250,000 in.lb per rail
- Minimum CLA 183" for tandem axle body (from cab to center of rearmost axle)
- Minimum CLA 201" for tri-axle body (from cab to center of rearmost axle)
Wrecker Specifications
- 50-Ton Rated liflting capacity
- 97'' Sliding recovery boom
- Working hydraulic pressure 3,000 psi
- Composite body 101,5'' wide (including fenders)
Boom Specifications
- Standard 2-stage V-shaped recovery boom
- Optional 3-stage V-shaped recovery boom
- Boom structural rating fully retracted: 100,000 lb (30 deg SAE J2512)
- Boom structural rating fully extended (2-stage): 40,000 lb (30 deg SAE J2512)
- Boom structural rating fully extended (3-stage): 20,000 lb (30 deg SAE J2512)
- Reach past tailgate (3-stage): 280"
- Maximum boom working height (3-stage): 410"
- Boom range of elevation: 0-59°
- 360° sheave head
Winch & Cable Specifications
- Dual 50,000 lb 2-speed planetary winches
- Wire ropes: 7/8" x 200'
- Air tensioners
- Air free spool
- Optional: dual 20,000 lb planetary auxiliary winches under the boom - 5/8'' x 200' wire ropes
- Optional: 50,000 lb planetary sliding drag winch - 3/4'' x 360' wire rope
Standard Features
- Tandem axle body
- Stylish monocoque corrosion resistant composite storage cabinets
- Air actuated sliding/rotating locks
- Lock & safety valve on elevation and extension cylinders

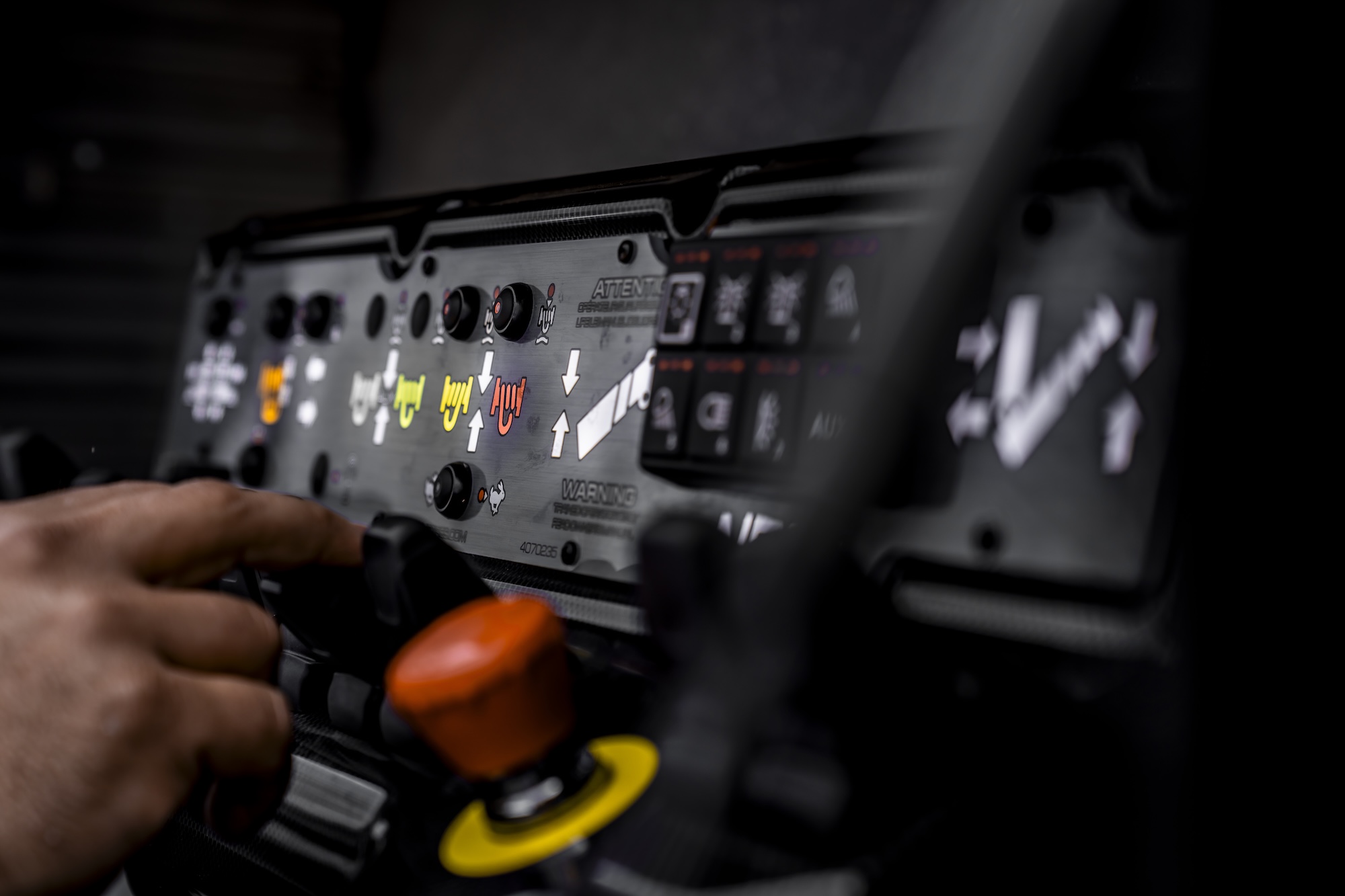

- Dual hydraulic controls with lighting
- Electric switches with rear controls
- 6 button wireless remote control
- 6 button CAN BUS keypad in the cab for lighting control
- Removable spades
- Rear mounted recovery anchors
- Mud flaps
- LED Lights
- Modular fork and accessory holders
- Emergency stop switches
- Epoxy primer
- Anodized aluminum roll-up doors
- Proportional joysticks
Optional Features
- Tri-axle body
- Fully proportional remote control with 2 batteries and charger
- 10/14-button wireless remote control
- Full width rear stabilizer with multi-function spades
- 5" color touch screen
- Scale system
- "L" shaped mounting plates 3/8"
- 3-stage HD/SHD Underlift
- 4-stage SHD Underlift
- Heavy duty tire lift
- Composite winch covers
- Large tunnel tool box (28" to 72")
- Composite battery box on top of tunnel
- Composite light pylon
- Work lights under the boom
- Puddle lights
- 2 work lights under the bumper
- Stainless docking lights
- Lifting beam / spreader bars
- Configurable toolbox organizers
- Stainless dress-up kit
- Installation
- Custom paint
Chassis Requirements
- Front axle: minimum 18,000 lb capacity
- Rear axles: minimum 46,000 lb capacity
- Minimum frame RBM: 3,250,000 in.lb per rail
- Minimum CLA 183" for tandem axle body (from cab to center of rearmost axle)
- Minimum CLA 201" for tri-axle body (from cab to center of rearmost axle)
