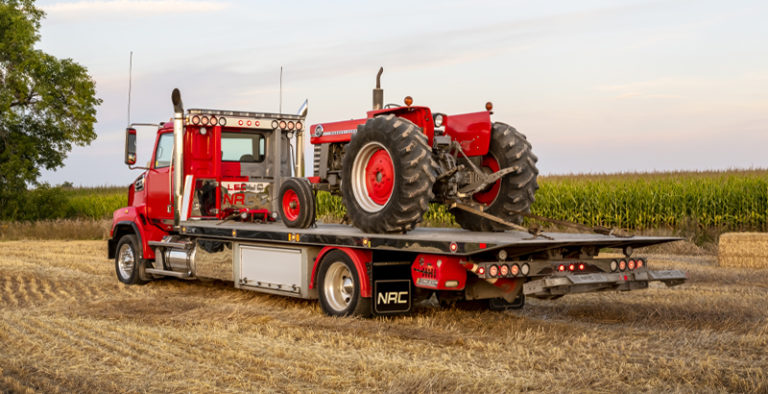

Built for operators who do it all, the 20TB carrier is a dependable partner for roadside assistance, recovery, and transport. Its versatile design allows it to adapt to changing terrain and job requirements with ease. Featuring proven components and smart engineering, the 20TB delivers strong performance, smooth operation, and excellent reliability. Designed to maximize uptime, it helps increase revenue while significantly reducing maintenance costs over the long run.
20TB
Packed with possibilities.
-
-
Carrier deck rating
-
20,000 lb
-
-
-
Available bed length
-
20’ – 30’
-
-
-
Standard winch
-
8,000 lb
-
- VERSATILE
- LEGENDARY RELIABILITY
- Nominal deck rating: 20,000 lb
- Tow bar lift rating: 8,000 lb @0'' / 3,000 lb @48''
- Standard winch: 8,000 lb
- Tow rating: 15,000 lb
- Deck length: 20'-30'
- Deck width: 102"
- 3/16" checker plate
- 3" high X 9" spacing roll formed 60ksi steel deck cross-members
- Operating pressure: 2,500 psi
- Fixed headboard with chain rack and steps
- 5 marker lights per side
- 3 chain slots on each side
- Hydraulic oil tank with filter - 13 GAL
- Winch embedded in chain rack
- Dual controls - lever type
- Pressure gauge
- Independent hydraulic tow bar
- Wheel lift system
- Lighting compliant with Federal Standard #108
- Deck lights
- Hydraulic gear pump, direct mount - 17 GPM
- Deck width: 98''
- 10,000 lb/12,000 lbs/15,000 lbs planetary main winch
- 8,000 lb/10,000 lb/12,000 lbs planetary auxiliary winch
- 3/16'' 44W smooth steel deck
- 3/16'' high tensile smooth steel deck
- 1/4'' 44W smooth steel deck
- 1/4'' high tensile smooth steel deck
- 1/4" checker plate steel deck
- Apitong wood decking (24'-30')
- 2" high X 9" spacing low profile roll formed 60ksi steel deck cross-members
- Fixed/Removable deck rails
- 2 work lights on top of the rear bumper
- Extra chain slots
- Trailer hitch & pintle hook adaptor
- Galvanized subframe
- 2/4/6/10-Button wireless remote control
- Stabilizer grip
- Stabilizer grip "side pull"
- Recovery roller guide
- Recovery sheave head
- 72'' toolbox w/ roll-up door
- 72'' chain basket
- Compact chain basket
- Custom deck paint
- Hot-dipped galvanized deck
- NRC Safe Loader(TM) automatic wheel-lift system
- 1 "V" chain 5/16" x 36" with "J" hooks
- 2 chains 5/16" x 96" with "J" hooks
- Wheel lift tie-down kit
- 2 chains 5/16" with Grab & RTJ Hooks & 2 binders
- 2 safety chains in sub-frame
- Cab to axle (single): 144''-244''
- Cab to last axle (tandem): 196''-274''
- Minimum RBM for 21'-25': 1,250,000 lb*in / rail
- Minimum RBM for>25': 1,925,000 lb*in /rail
- Minimum RBM for tandem: 2,250,000 lb*in / rail
Carrier Specifications
- Nominal deck rating: 20,000 lb
- Tow bar lift rating: 8,000 lb @0'' / 3,000 lb @48''
- Standard winch: 8,000 lb
- Tow rating: 15,000 lb
- Deck length: 20'-30'
- Deck width: 102"
- 3/16" checker plate
- 3" high X 9" spacing roll formed 60ksi steel deck cross-members
- Operating pressure: 2,500 psi
Standard Features

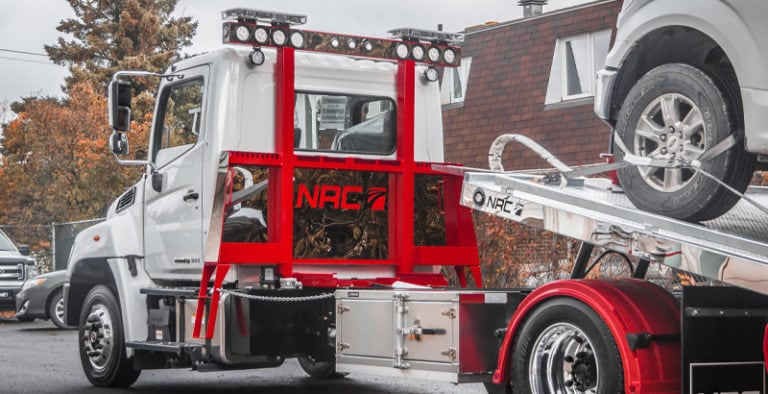

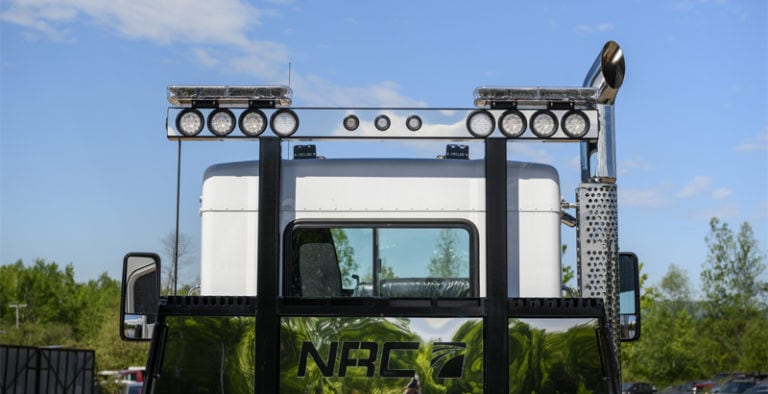

- Fixed headboard with chain rack and steps
- 5 marker lights per side
- 3 chain slots on each side
- Hydraulic oil tank with filter - 13 GAL
- Winch embedded in chain rack
- Dual controls - lever type
- Pressure gauge
- Independent hydraulic tow bar
- Wheel lift system
- Lighting compliant with Federal Standard #108
- Deck lights
- Hydraulic gear pump, direct mount - 17 GPM
Optional Features
- Deck width: 98''
- 10,000 lb/12,000 lbs/15,000 lbs planetary main winch
- 8,000 lb/10,000 lb/12,000 lbs planetary auxiliary winch
- 3/16'' 44W smooth steel deck
- 3/16'' high tensile smooth steel deck
- 1/4'' 44W smooth steel deck
- 1/4'' high tensile smooth steel deck
- 1/4" checker plate steel deck
- Apitong wood decking (24'-30')
- 2" high X 9" spacing low profile roll formed 60ksi steel deck cross-members

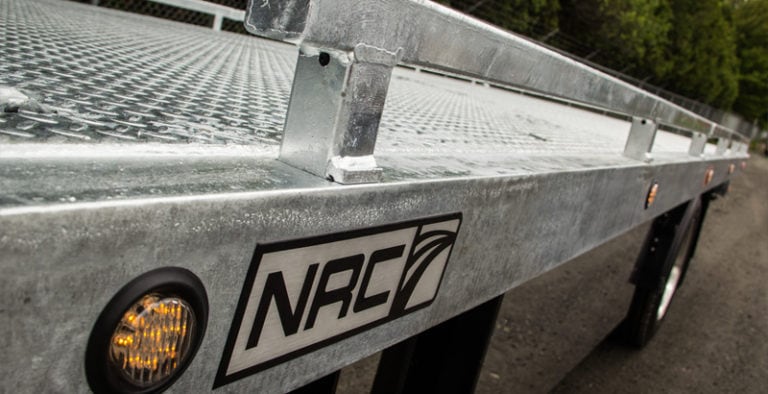

- Fixed/Removable deck rails
- 2 work lights on top of the rear bumper
- Extra chain slots
- Trailer hitch & pintle hook adaptor
- Galvanized subframe
- 2/4/6/10-Button wireless remote control
- Stabilizer grip
- Stabilizer grip "side pull"
- Recovery roller guide
- Recovery sheave head
- 72'' toolbox w/ roll-up door
- 72'' chain basket
- Compact chain basket
- Custom deck paint

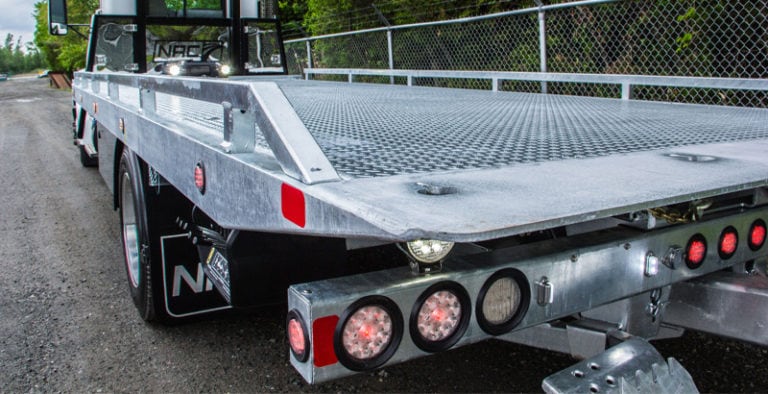

- Hot-dipped galvanized deck

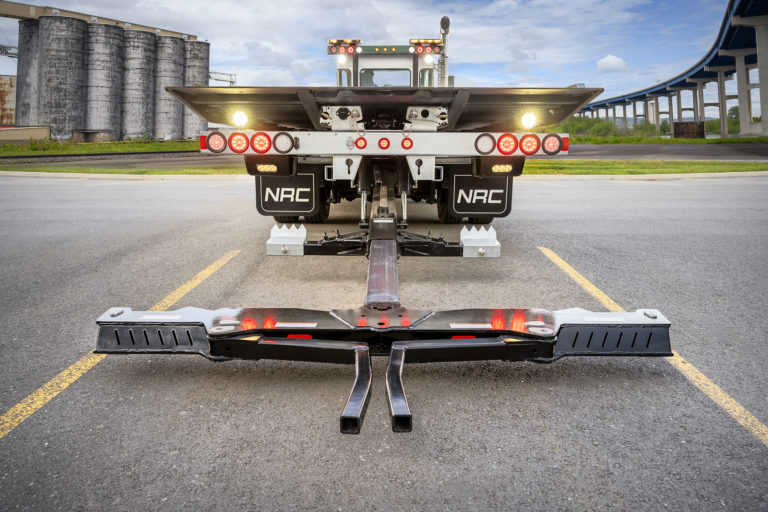

- NRC Safe Loader(TM) automatic wheel-lift system
Chain & Binder Specifications
- 1 "V" chain 5/16" x 36" with "J" hooks
- 2 chains 5/16" x 96" with "J" hooks
- Wheel lift tie-down kit
- 2 chains 5/16" with Grab & RTJ Hooks & 2 binders
- 2 safety chains in sub-frame
Chassis Requirements
- Cab to axle (single): 144''-244''
- Cab to last axle (tandem): 196''-274''
- Minimum RBM for 21'-25': 1,250,000 lb*in / rail
- Minimum RBM for>25': 1,925,000 lb*in /rail
- Minimum RBM for tandem: 2,250,000 lb*in / rail
