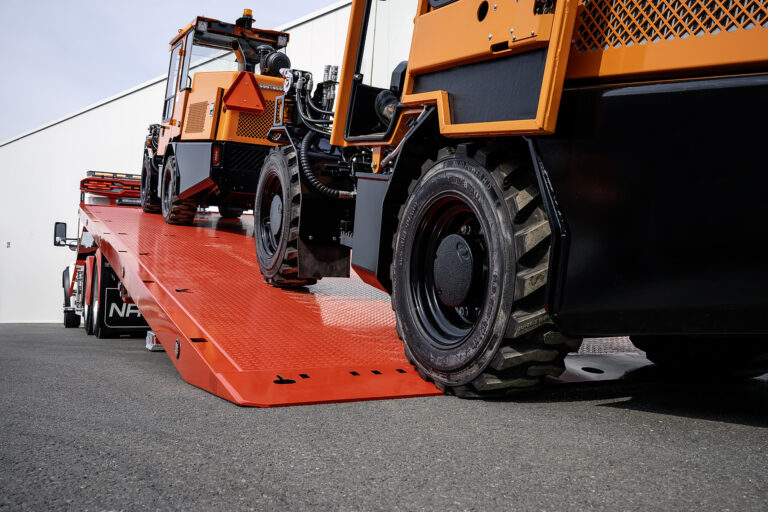

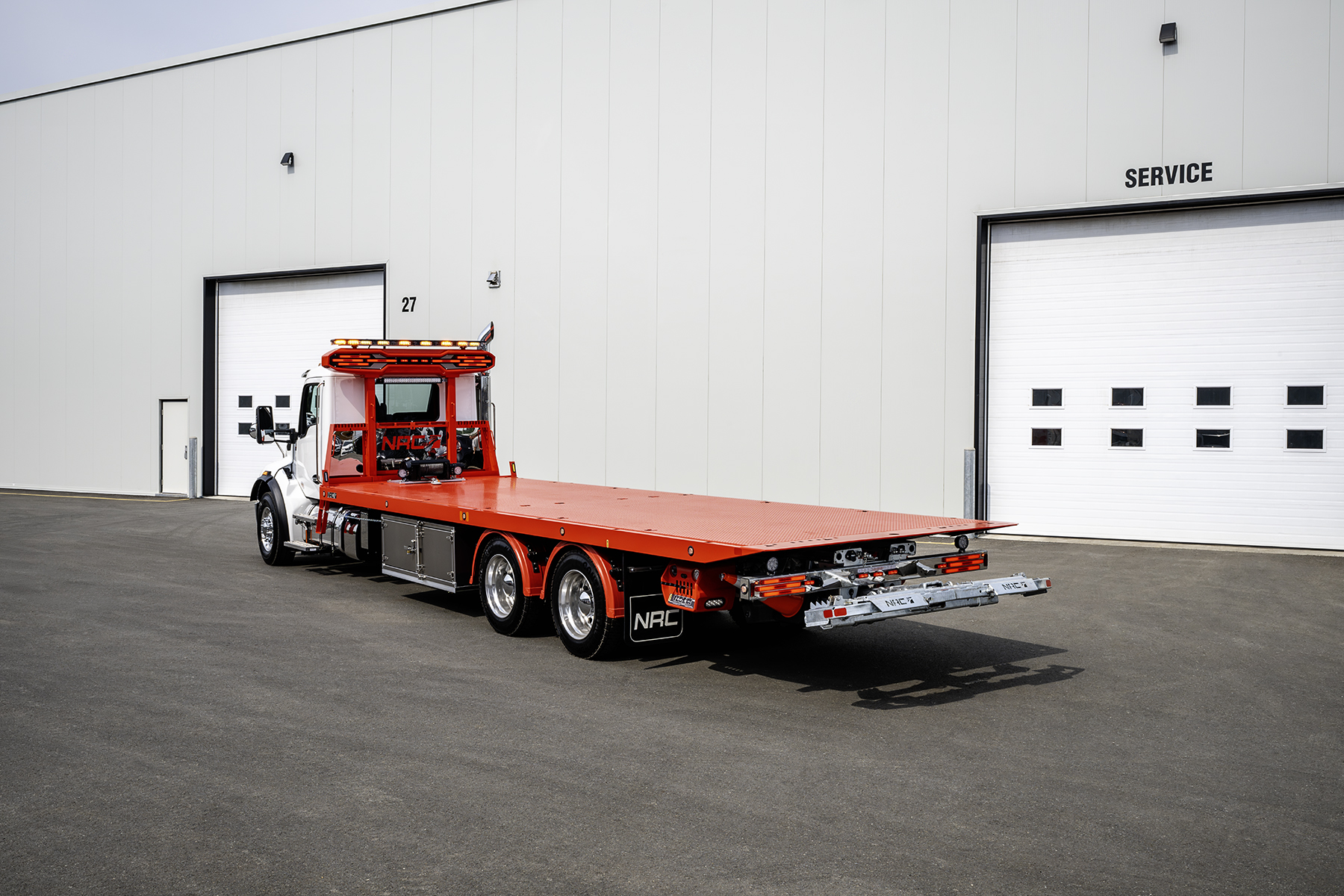

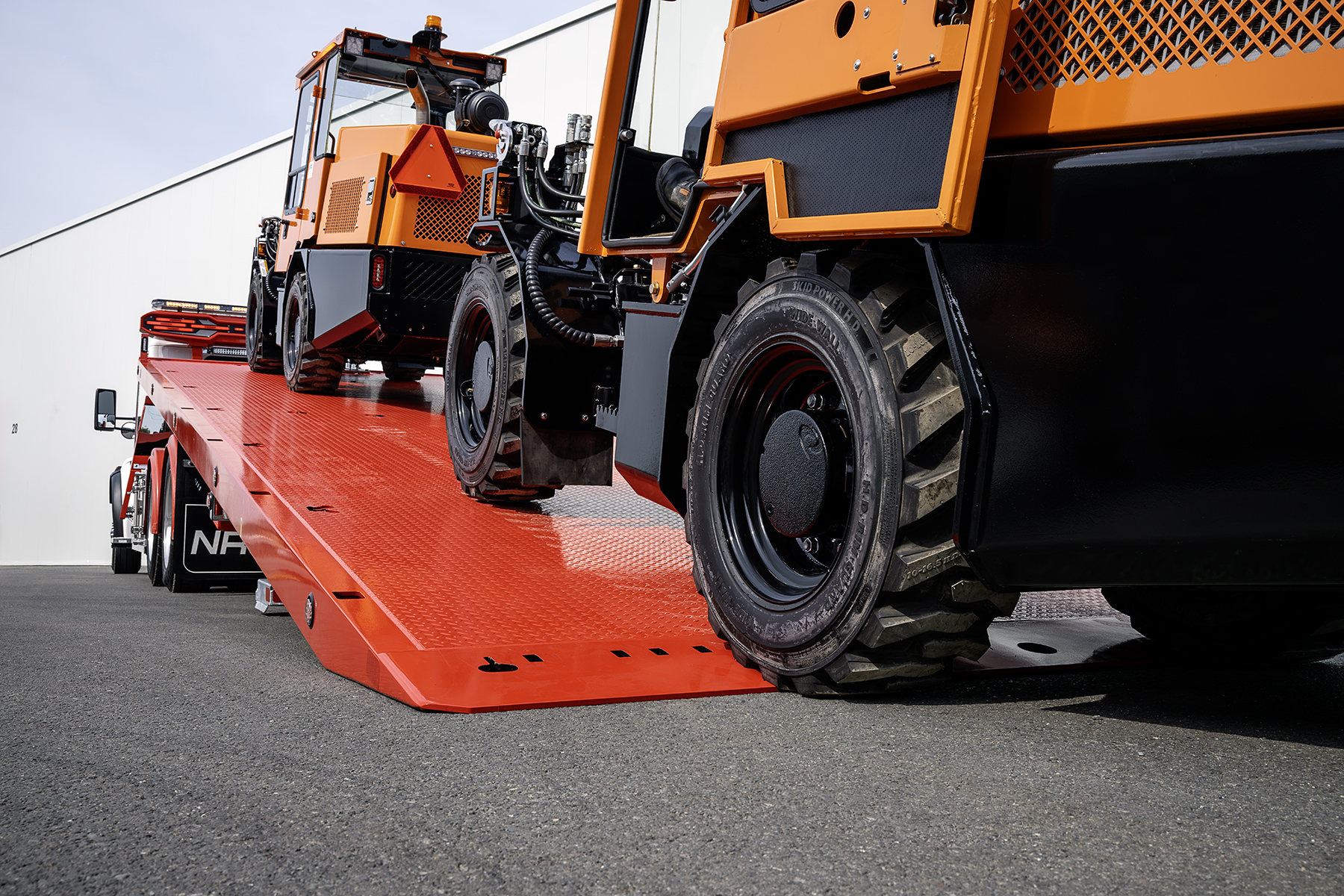

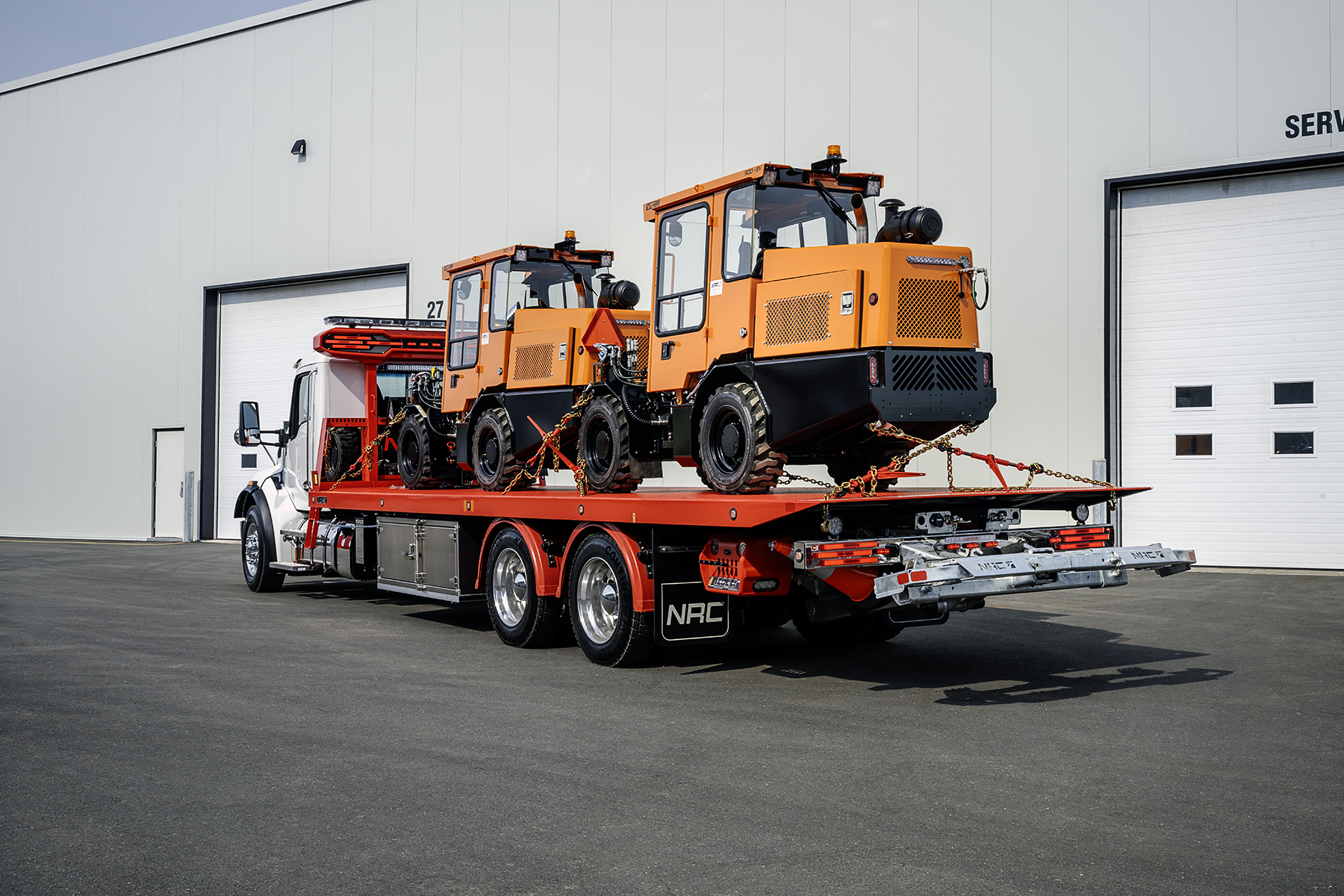

Designed to take on unpredictable jobs, the 30TB carrier delivers outstanding efficiency and reliability. Its lower deck height, lightweight yet robust structure, and powerful hydraulic components make it exceptionally versatile. With a 15-ton deck capacity and a 7.5-ton tow bar, the 30TB is always up to the task. Truck recovery? No problem. Load up heavy machinery and tow a car, all at the same time. Make the most of every mile.
30TB
Make the most of every mile.
-
-
Carrier deck rating
-
30,000 lb
-
-
-
Available bed length
-
24' – 30'
-
-
-
Standard winch
-
15,000 lb
-

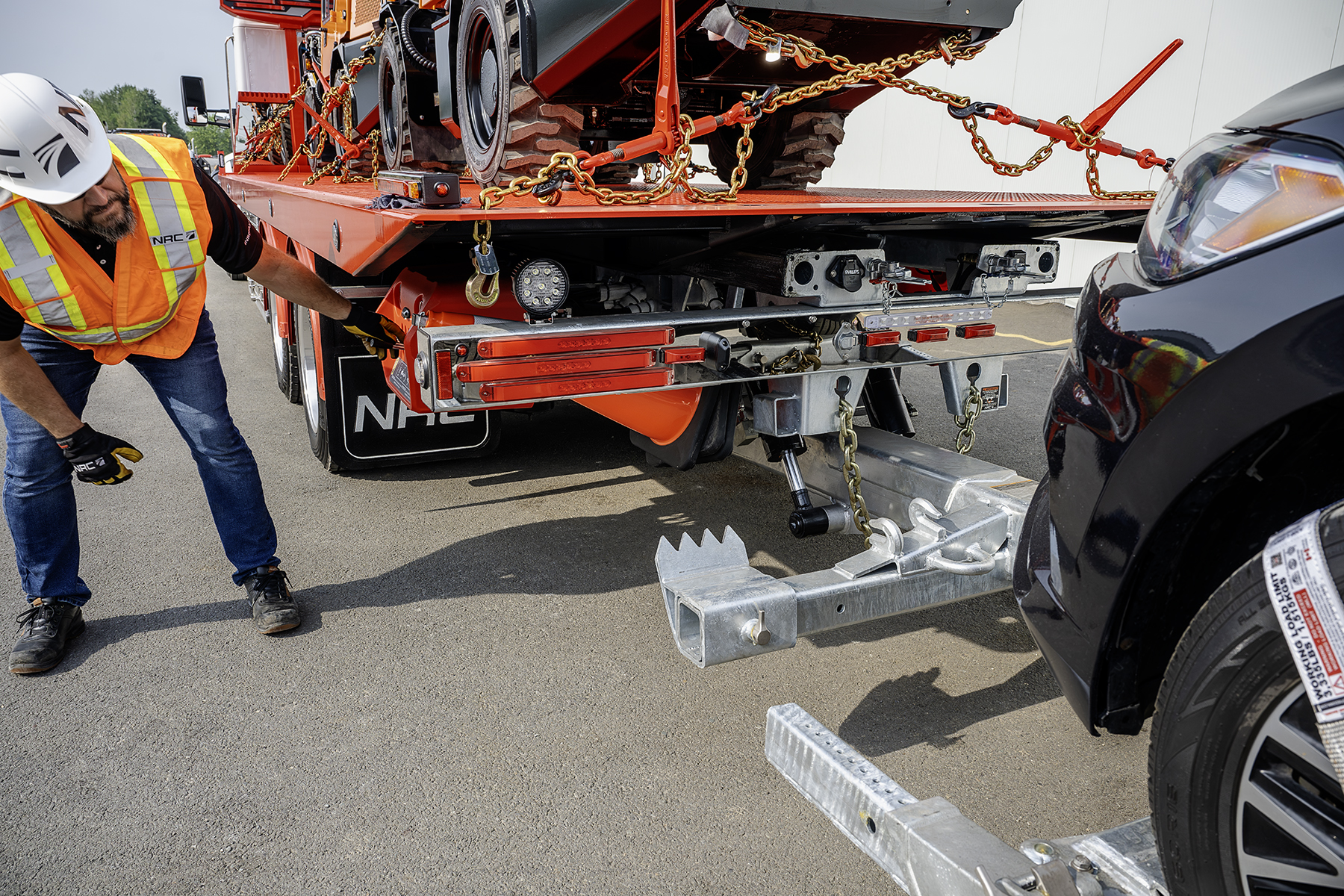

- TOW & CARRY AT THE SAME TIME
- LOWER DECK HEIGHT
- Nominal deck rating : 30,000 lb
- Tow bar lift rating: 17,500 lb @0'' / 6,500 lb @58''
- Tow rating: 35,000 lb
- Standard winch: 15,000 lb planetary
- Deck length: 24'-30'
- Deck width: 102"
- Seamless deck - 1/4" checker plate
- 3" high X 9" spacing roll formed 60ksi steel deck cross-members
- Operating pressure: 2,600 PSI
- Fixed headboard with chain rack and steps
- 5 marker lights per side
- 5 chain slots on each side
- Hydraulic oil tank with filter - 12 GAL
- Winch embedded in chain rack
- Dual controls - lever type
- Air actuated winch free spool
- Pressure gauge
- Independent hydraulic tow bar
- Lighting compliant with Federal Standard #108
- Deck lights
- Hydraulic gear pump, direct mount - 17 GPM
- 20,000 lb/25,000 lb planetary main winch
- 8,000 lb/10,000 lb/12,000 lb planetary auxiliary winch
- 1/4'' 44W smooth steel deck
- 1/4'' high tensile smooth steel deck
- Fixed/Removable deck rails
- Rub rails
- 2 work lights on top of rear bumper
- Extra chain slots
- Trailer hitch & pintle hook adaptor
- 4/5 sliding tracks for winch binder (driver side)
- Galvanized subframe
- 2/4/6/10-Button wireless remote control
- Stabilizer grip
- Stabilizer grip "side pull"
- Recovery roller guide
- Recovery sheave head
- Large tool box 72" w/ roll-up doors
- 72'' chain basket
- Compact chain basket
- Custom deck paint
- Hot-dipped galvanized deck
- 2 chains 5/16" x 96" w/ "J" hook
- 2 chains 3/8" x 60" w/ "Slip" hook
- 3 chain binders
- 4 chains 3/8" x 96" w/ "Grab" hooks
- 2 chains 1/2" x 96" w/ "Grab" hook
- Cab to last axle: 196''-274''
- Minimum frame RBM (tandem): 2,500,000 lb-in per rail
Carrier Specifications
- Nominal deck rating : 30,000 lb
- Tow bar lift rating: 17,500 lb @0'' / 6,500 lb @58''
- Tow rating: 35,000 lb
- Standard winch: 15,000 lb planetary
- Deck length: 24'-30'
- Deck width: 102"
- Seamless deck - 1/4" checker plate
- 3" high X 9" spacing roll formed 60ksi steel deck cross-members
- Operating pressure: 2,600 PSI
Standard Features

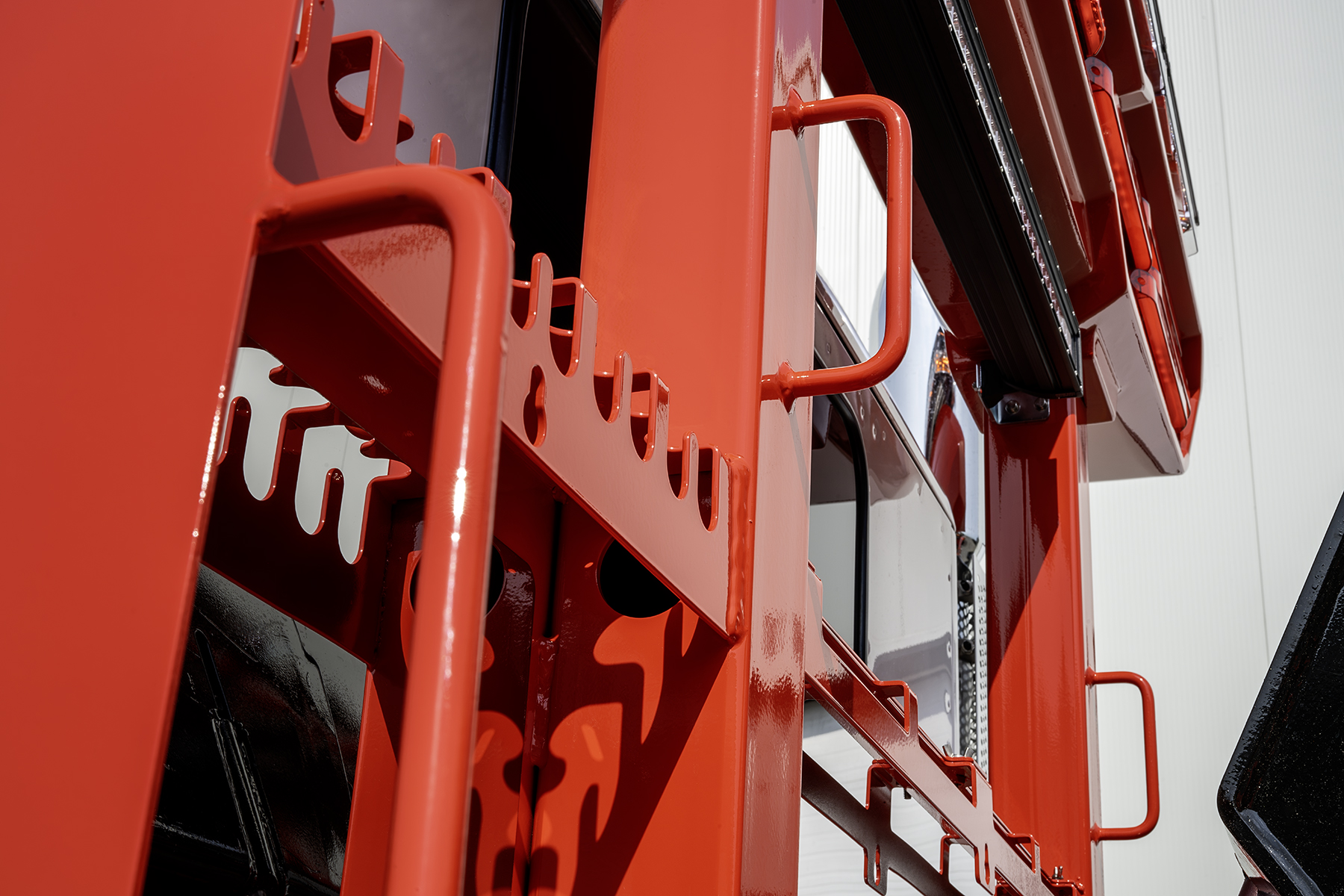

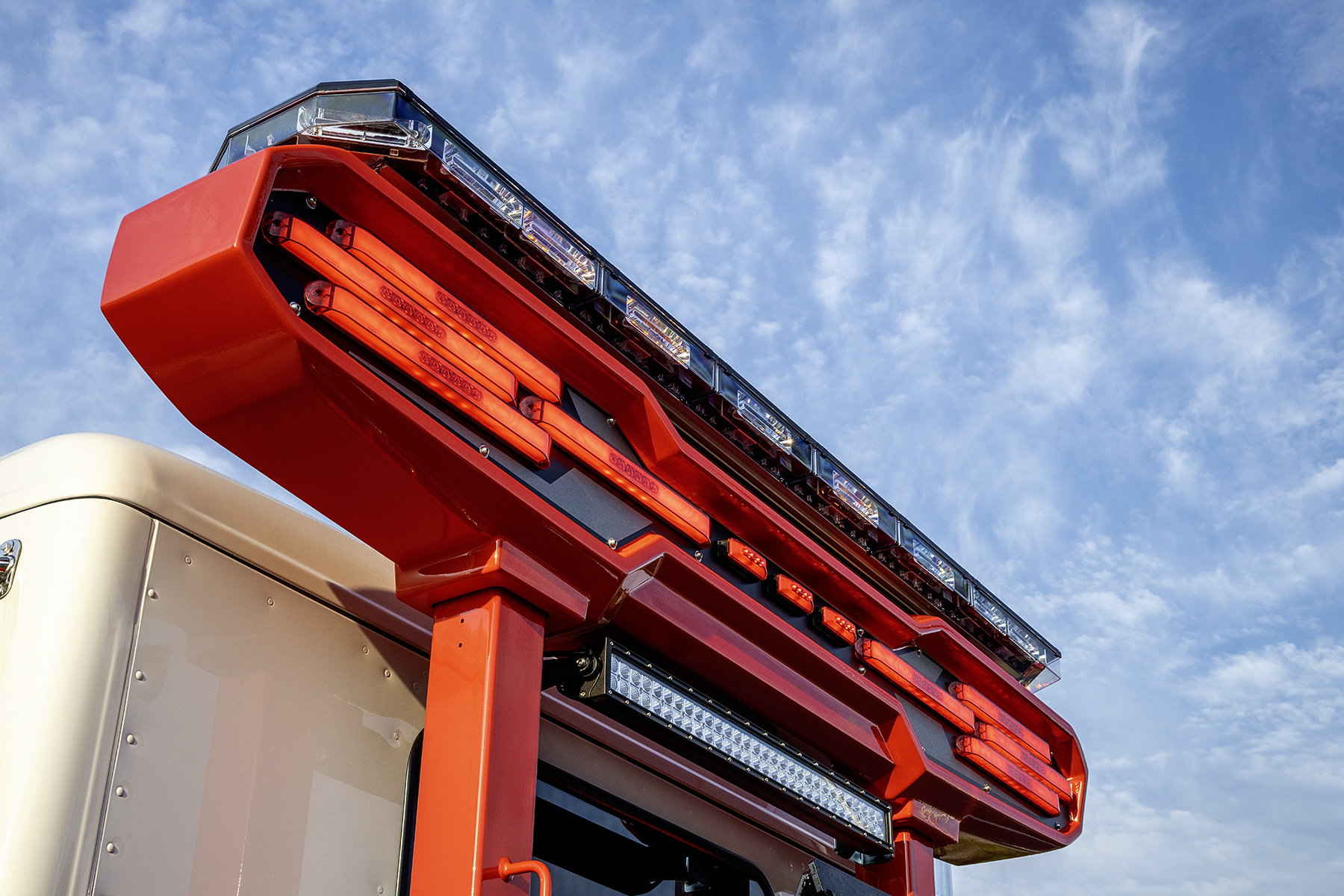

- Fixed headboard with chain rack and steps
- 5 marker lights per side

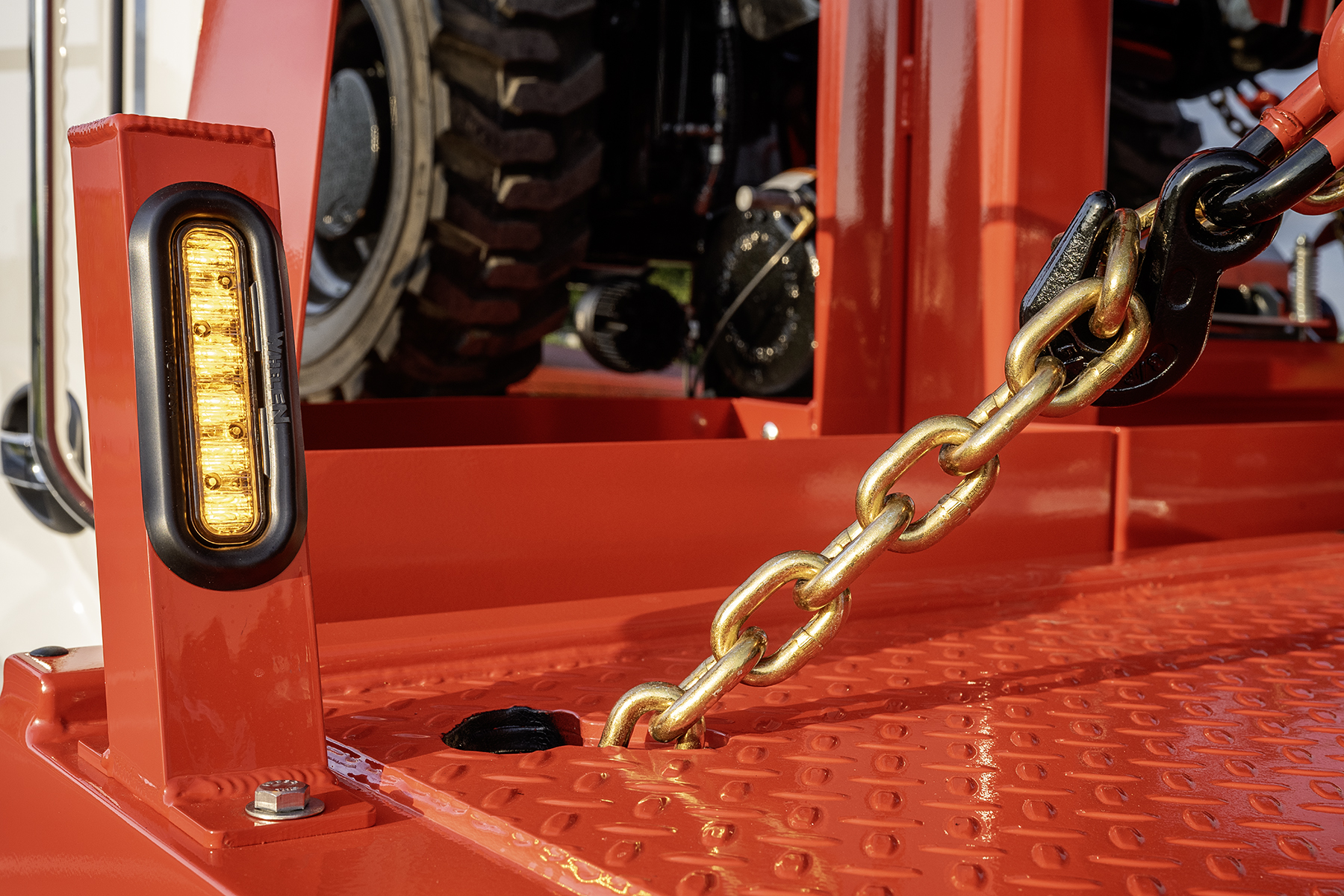

- 5 chain slots on each side
- Hydraulic oil tank with filter - 12 GAL
- Winch embedded in chain rack

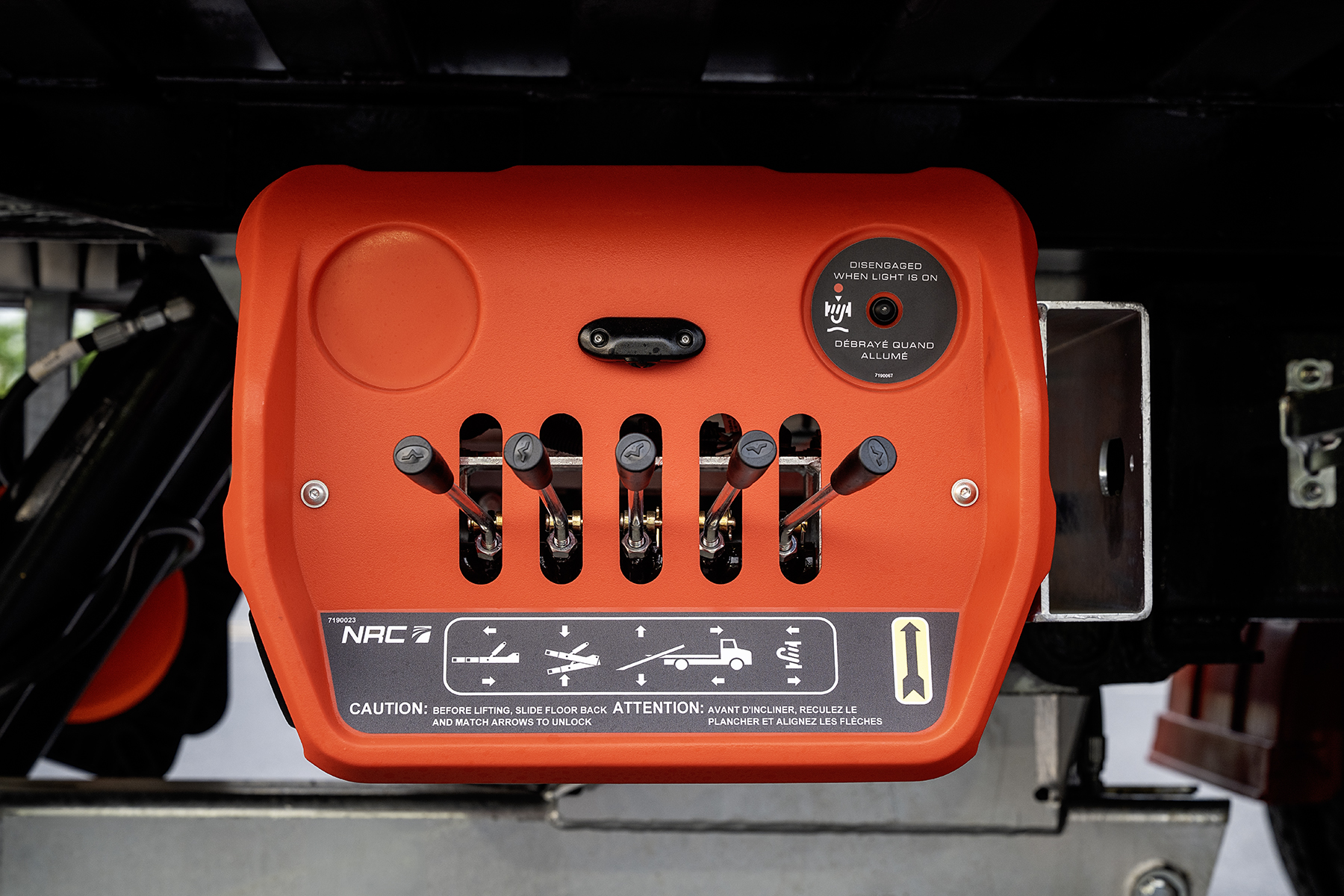

- Dual controls - lever type
- Air actuated winch free spool
- Pressure gauge

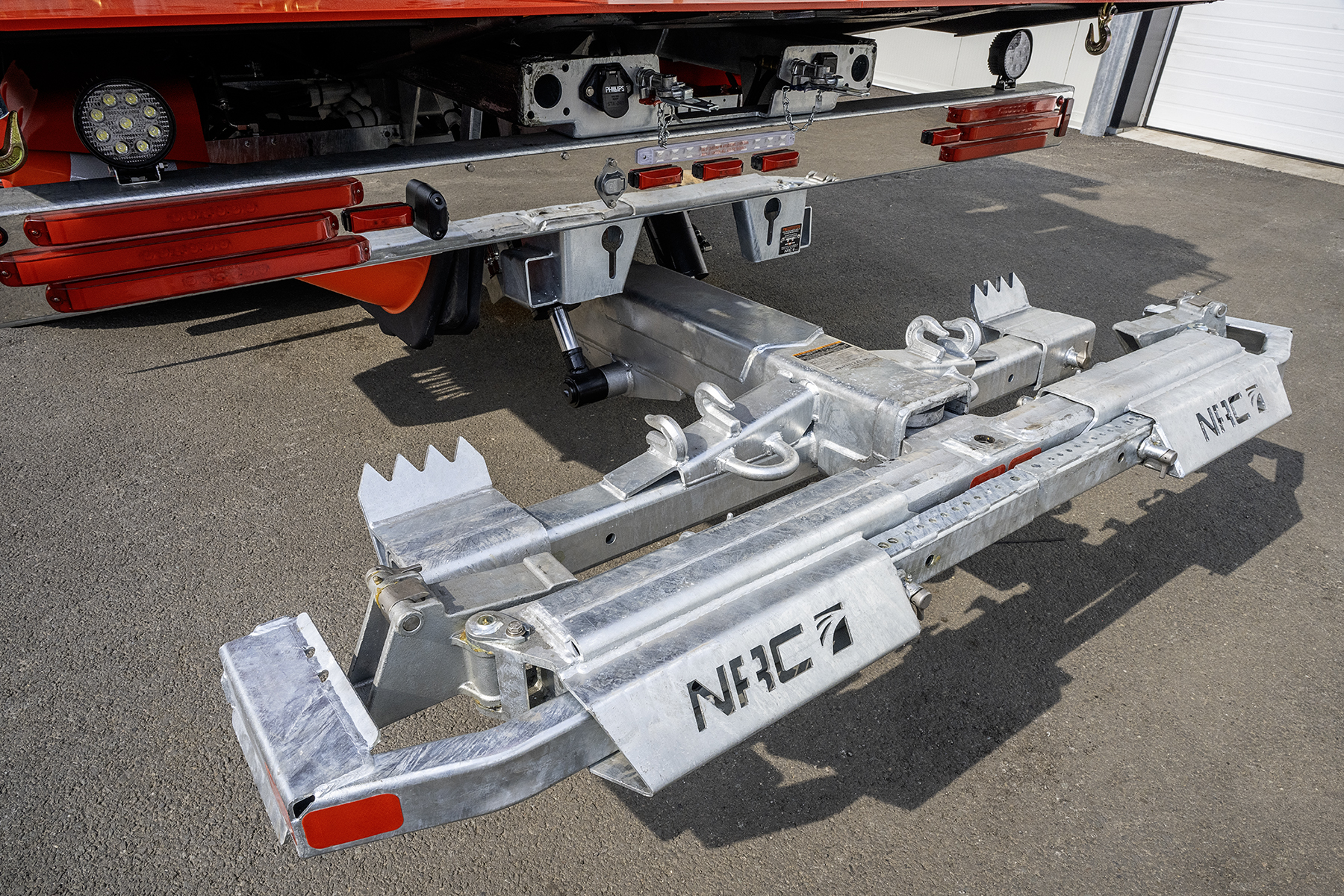

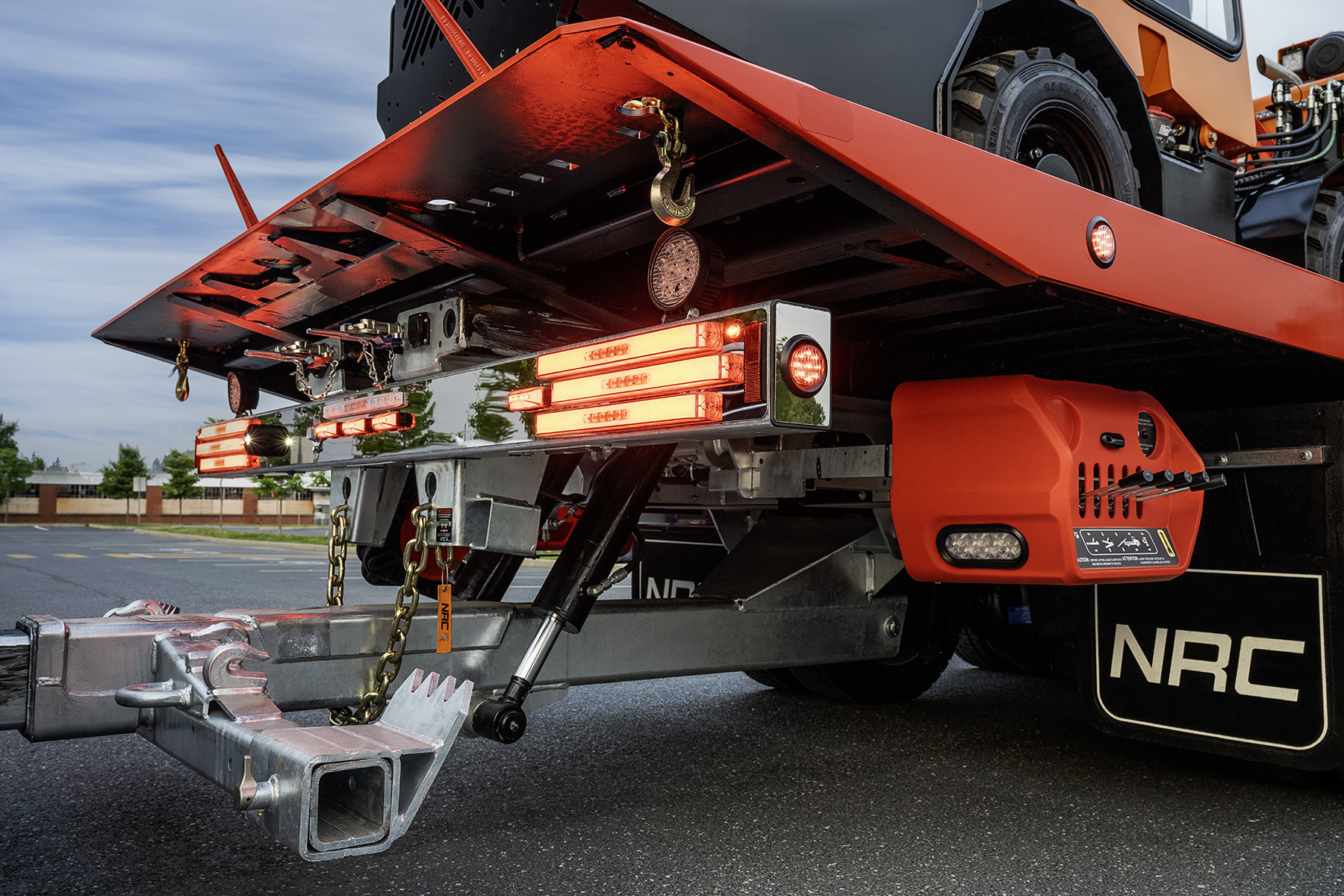

- Independent hydraulic tow bar
- Lighting compliant with Federal Standard #108
- Deck lights
- Hydraulic gear pump, direct mount - 17 GPM
Optional Features
- 20,000 lb/25,000 lb planetary main winch
- 8,000 lb/10,000 lb/12,000 lb planetary auxiliary winch
- 1/4'' 44W smooth steel deck
- 1/4'' high tensile smooth steel deck
- Fixed/Removable deck rails
- Rub rails
- 2 work lights on top of rear bumper
- Extra chain slots
- Trailer hitch & pintle hook adaptor
- 4/5 sliding tracks for winch binder (driver side)
- Galvanized subframe
- 2/4/6/10-Button wireless remote control
- Stabilizer grip
- Stabilizer grip "side pull"
- Recovery roller guide
- Recovery sheave head

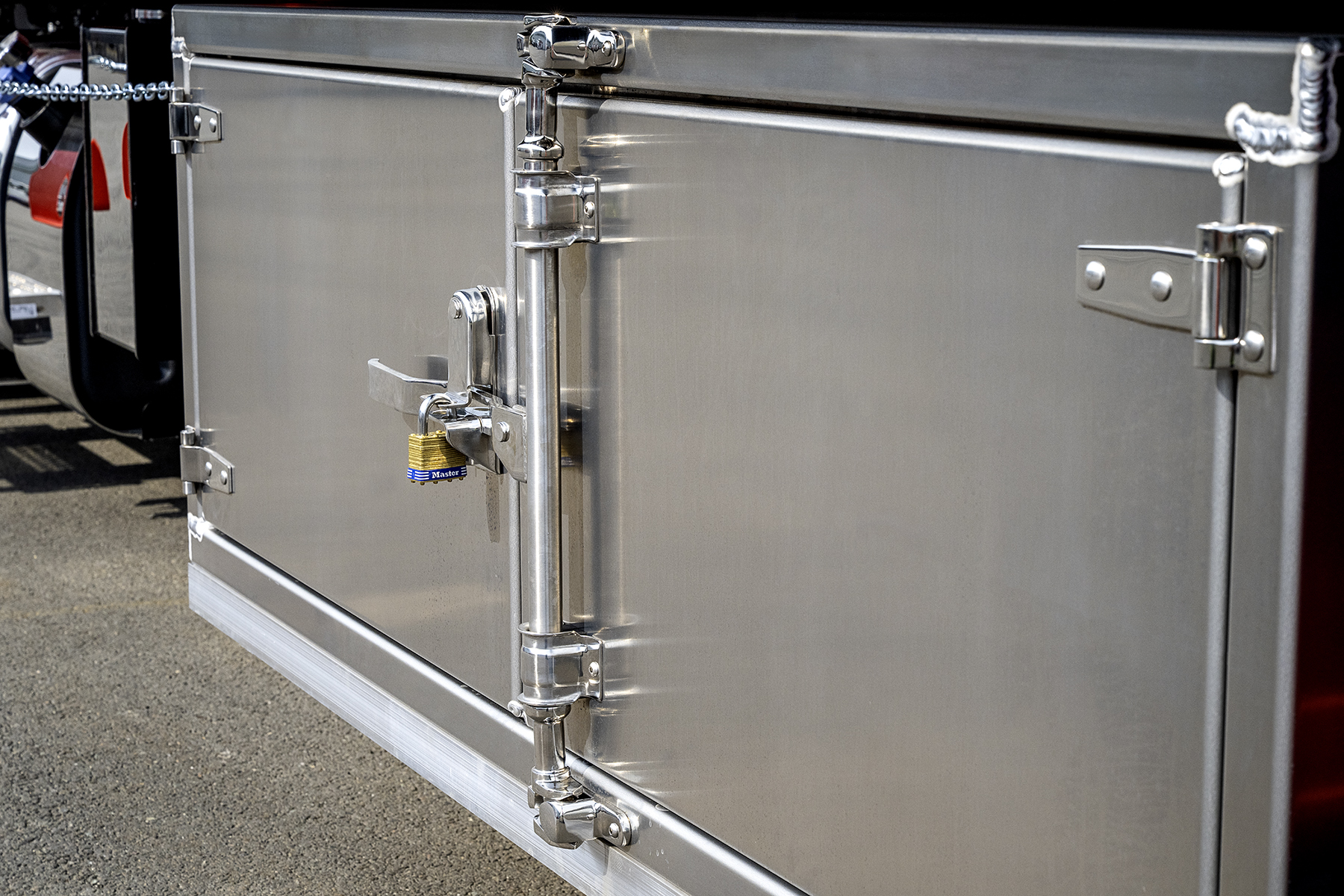

- Large tool box 72" w/ roll-up doors
- 72'' chain basket
- Compact chain basket
- Custom deck paint
- Hot-dipped galvanized deck
Chain & Binder Specifications
- 2 chains 5/16" x 96" w/ "J" hook
- 2 chains 3/8" x 60" w/ "Slip" hook
- 3 chain binders
- 4 chains 3/8" x 96" w/ "Grab" hooks
- 2 chains 1/2" x 96" w/ "Grab" hook
Chassis Requirements
- Cab to last axle: 196''-274''
- Minimum frame RBM (tandem): 2,500,000 lb-in per rail
