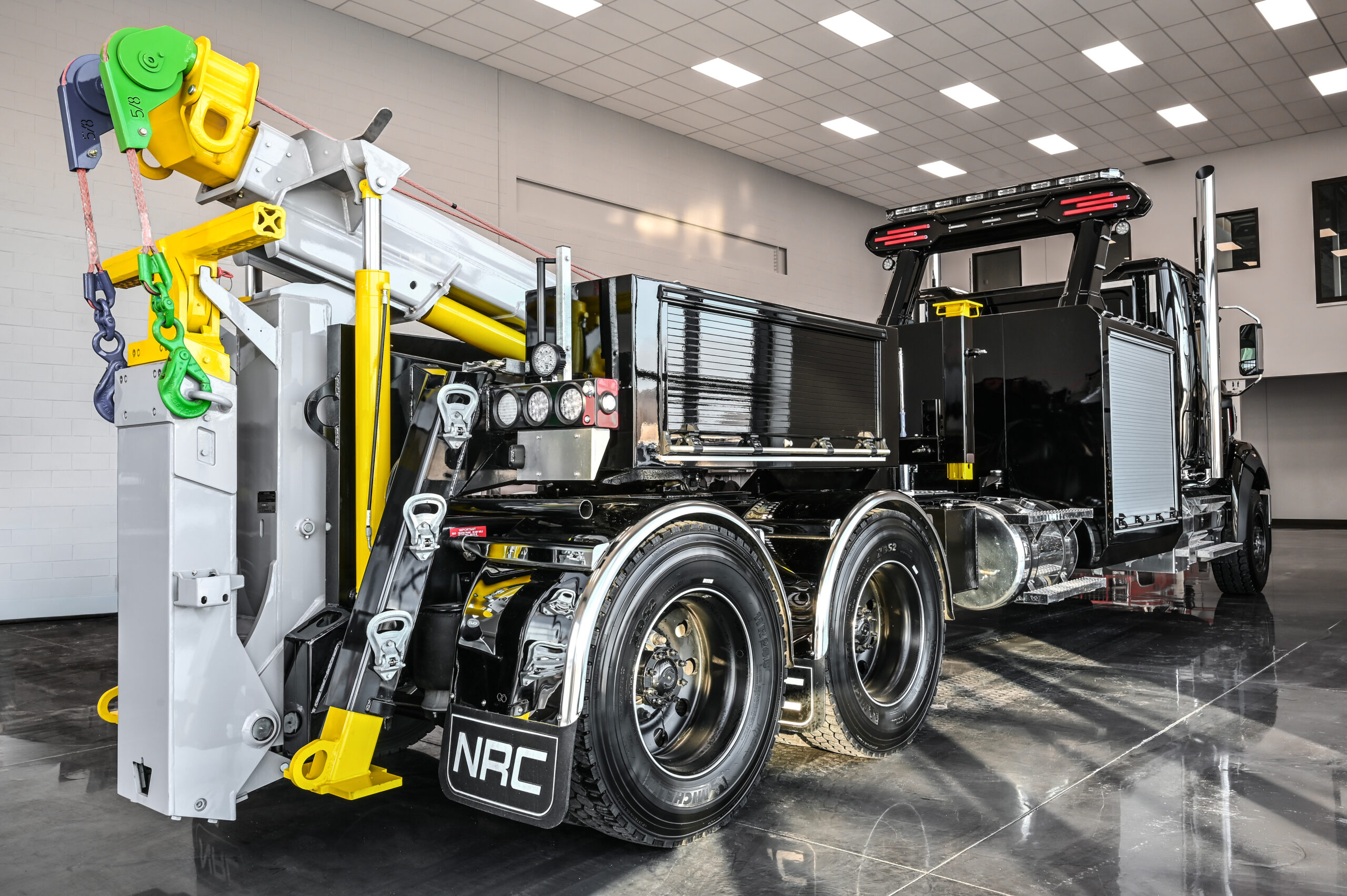

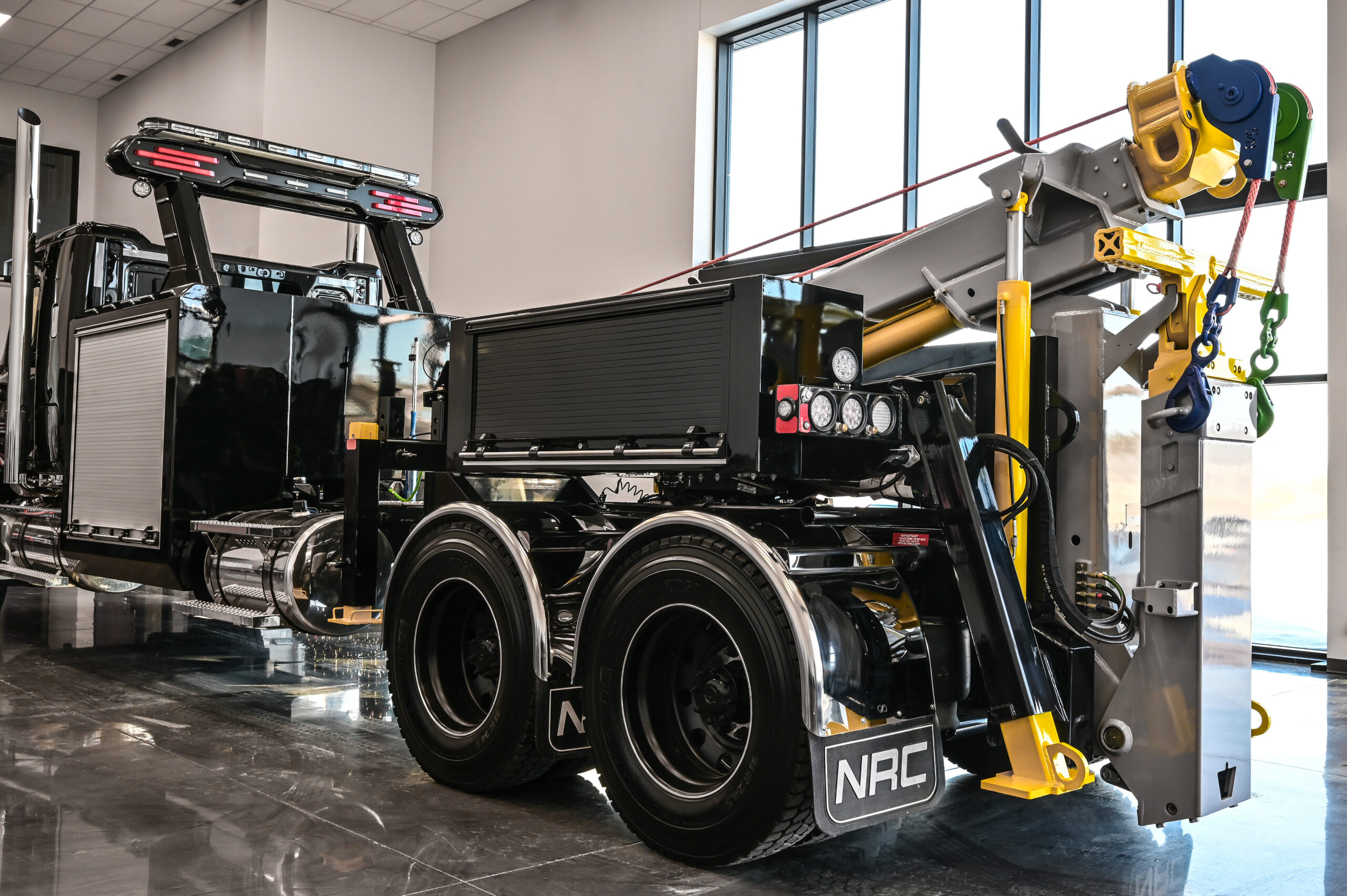

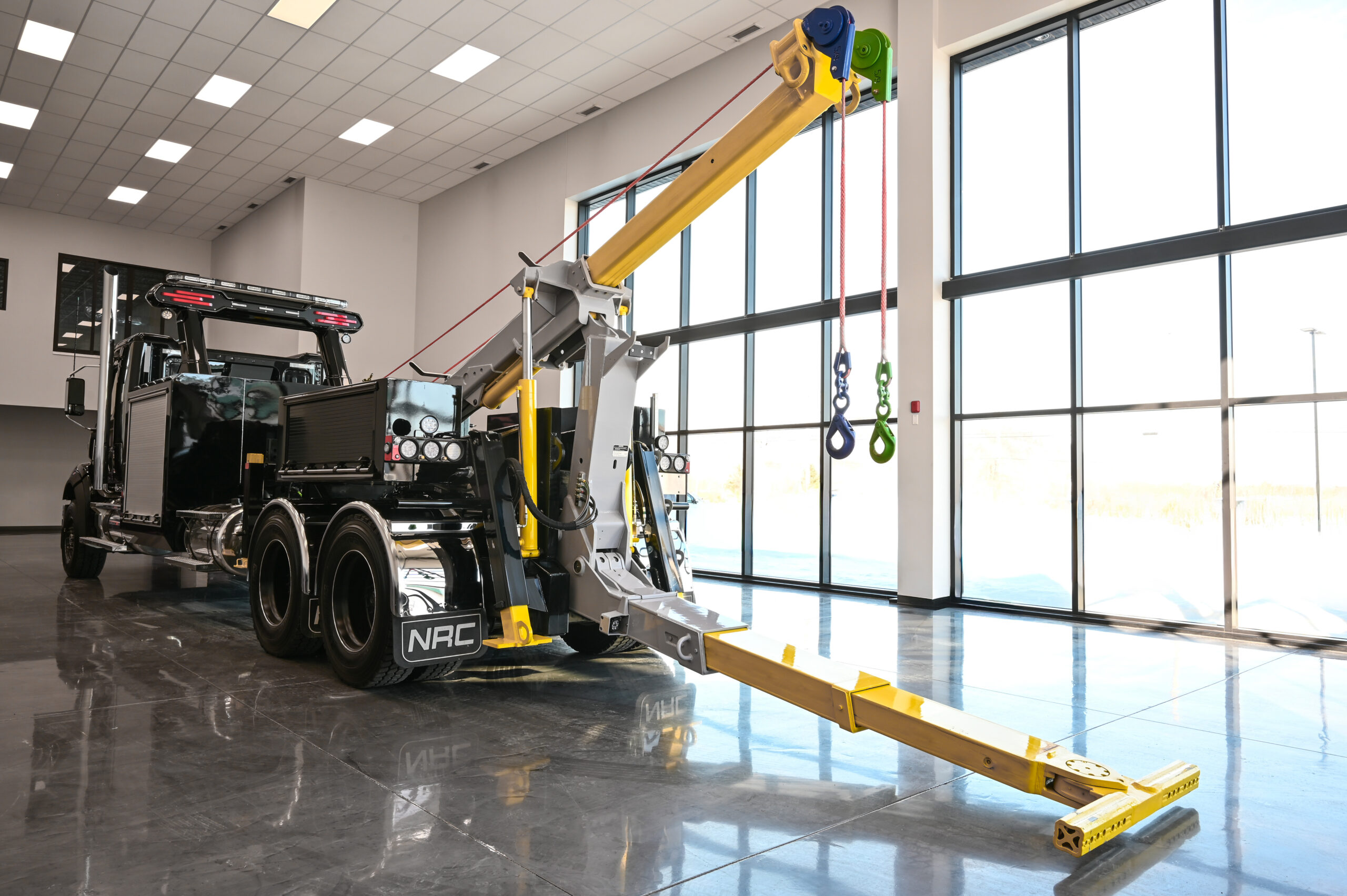

QUICKSWAP™ WITH INTEGRATED BOOM

Built to get the job done.

BOOM REACH

78’’
Tow rating

UP TO 90,000 lb
Basic weight

FROM 8,750 lb

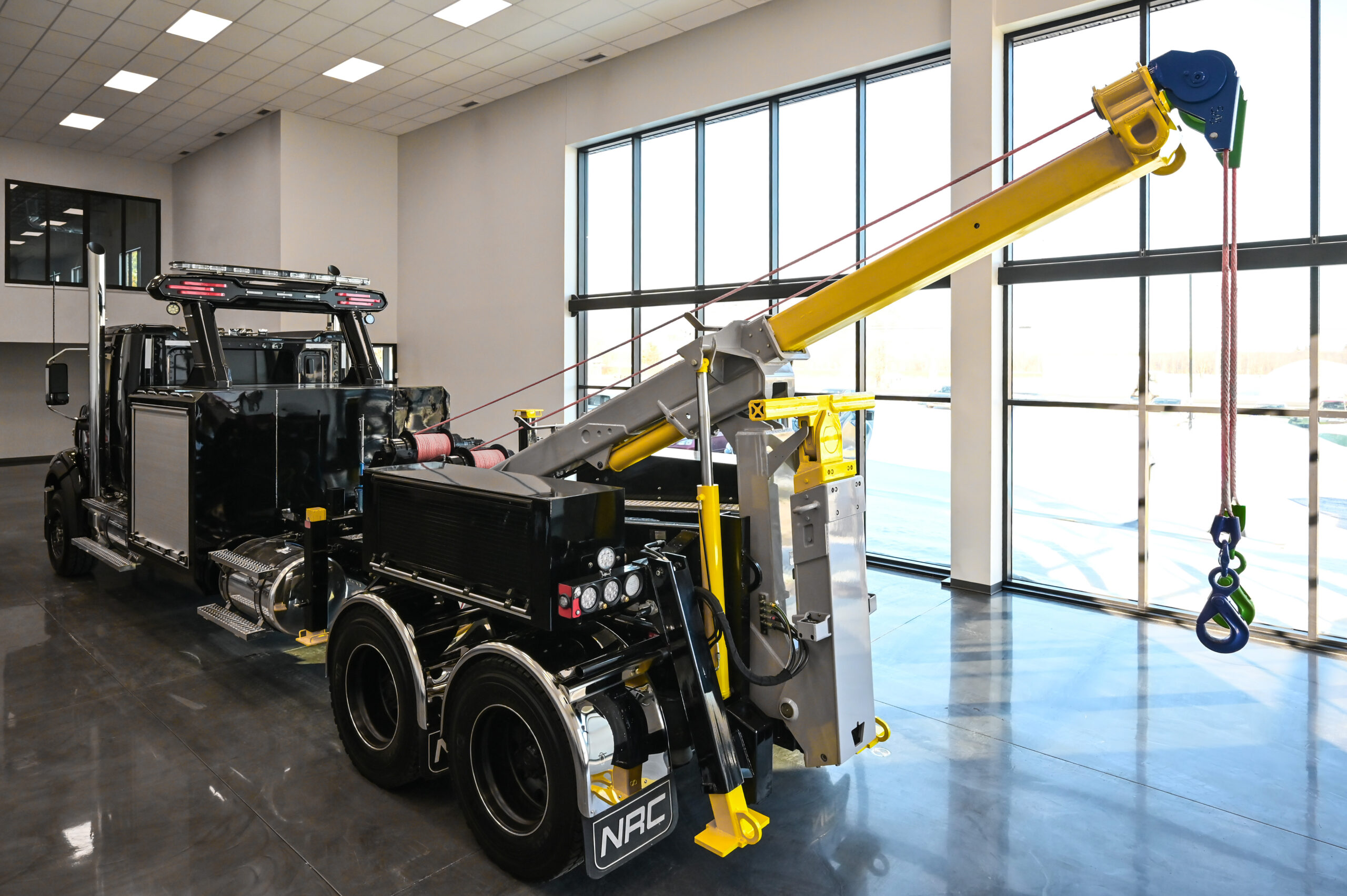

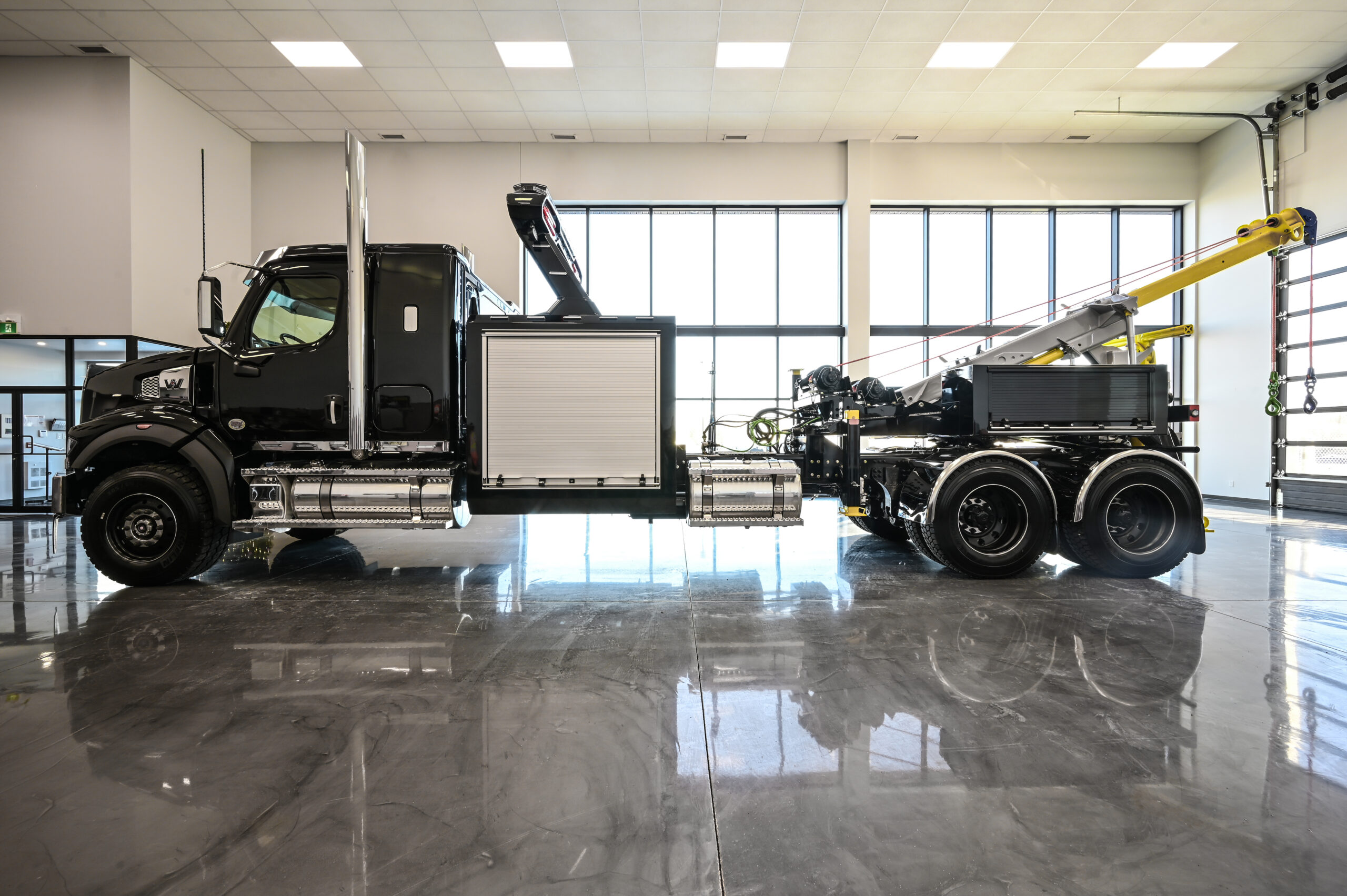

This legendary unit is now available with an optional integrated boom, delivering unmatched versatility to the toughest detachable unit in the industry. Designed for operators who demand both exceptional towing performance and true recovery capabilities, the new QuickSwap™ configuration features a two-stage telescopic boom with up to two 25,000 lb planetary winches. Bonus point: zero stress when you hit the scales.

True recovery capabilities
Great return on investment

Boom specifications

2-stage telescopic high-tensile boom
Boom structural rating fully retracted: 50,000 lb (30° SAE J2512)
Boom structural rating fully extended: 16,000 lb (30° SAE J2512)
Reach past tailgate: 78"
Maximum boom working height: 180"
Range of elevation: 15° - 40°

Standard features

The Quickswap™ with integrated boom is a standard Quickswap™ equipped with additional optional features — including jack legs, the integrated boom with an underlift arm tilting mechanism (patent pending), and winch options. For the complete list of standard and optional equipment, refer to the Quickswap™ section.

Optional features

The Quickswap™ with integrated boom is a standard Quickswap™ equipped with additional optional features — including jack legs, the integrated boom with an underlift arm tilting mechanism (patent pending), and winch options. For the complete list of standard and optional equipment, refer to the Quickswap™ section.

Chassis requirements

Refer to the Quickswap™ section.
