At NRC, innovation is an obsession—and the CSR65 proves it. Engineered to exceed expectations, this rotator features the Slider® system to deliver increased lifting power, extended reach, and precise control through advanced technologies and perfectly tuned features. The evolved CSR design includes larger cylinders, a redesigned boom profile, an ergonomic control panel with Lift-IQ™ technology, and wider outriggers with wear pads. The CSR65 doesn’t avoid challenges—it takes them head on.
CSR65
Stronger. Smarter. Steadier.
-
-
Capacity
-
65 tons
-
-
-
Standard winches
-
50,000 lb
-
-
-
Boom reach
-
373''
-
- SLIDER® SYSTEM
- LIFT-IQ™ TECHNOLOGY
- 65-ton hydraulic sliding-rotating wrecker boom
- 65-ton safe lifting capacity
- 360° continuous rotation

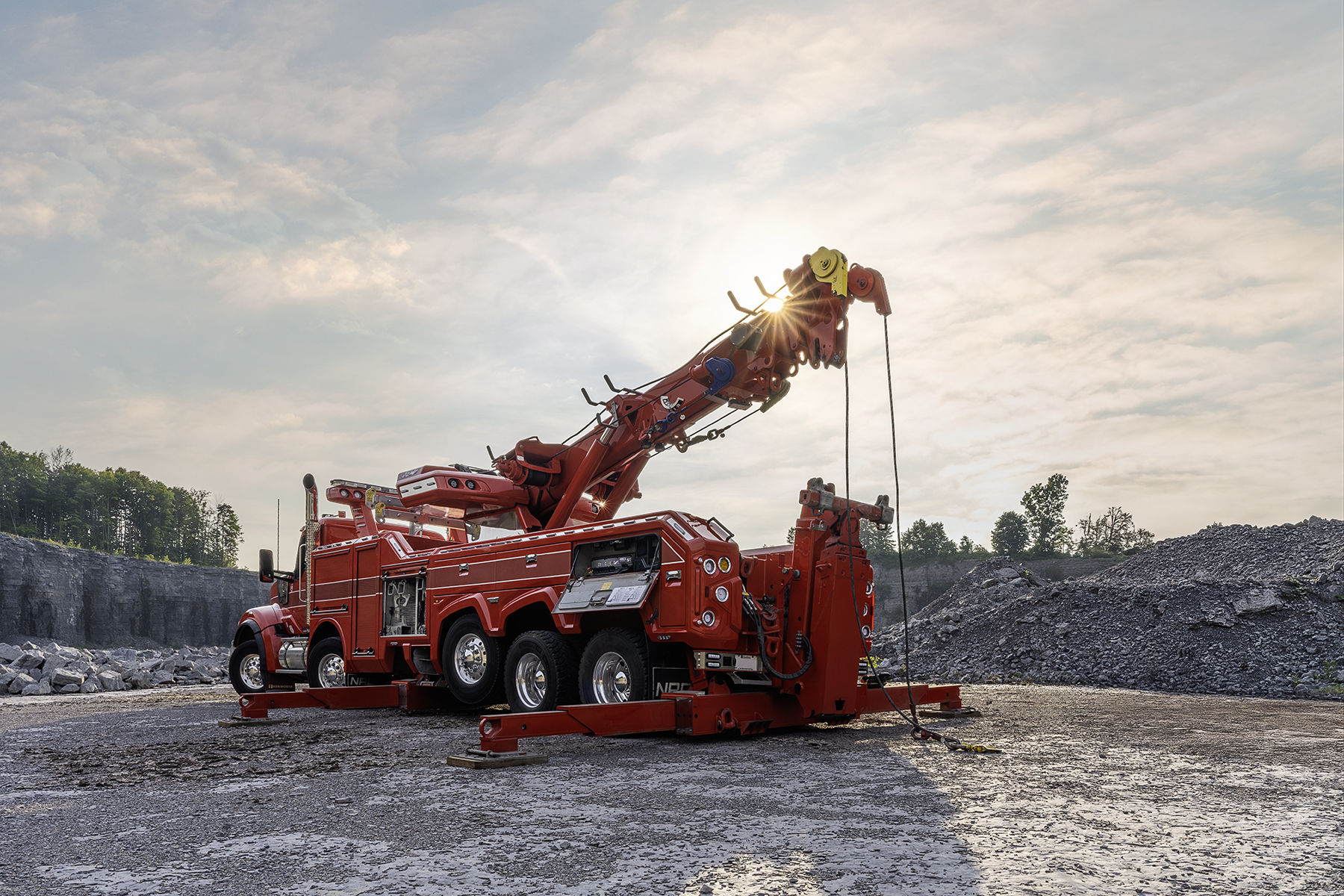

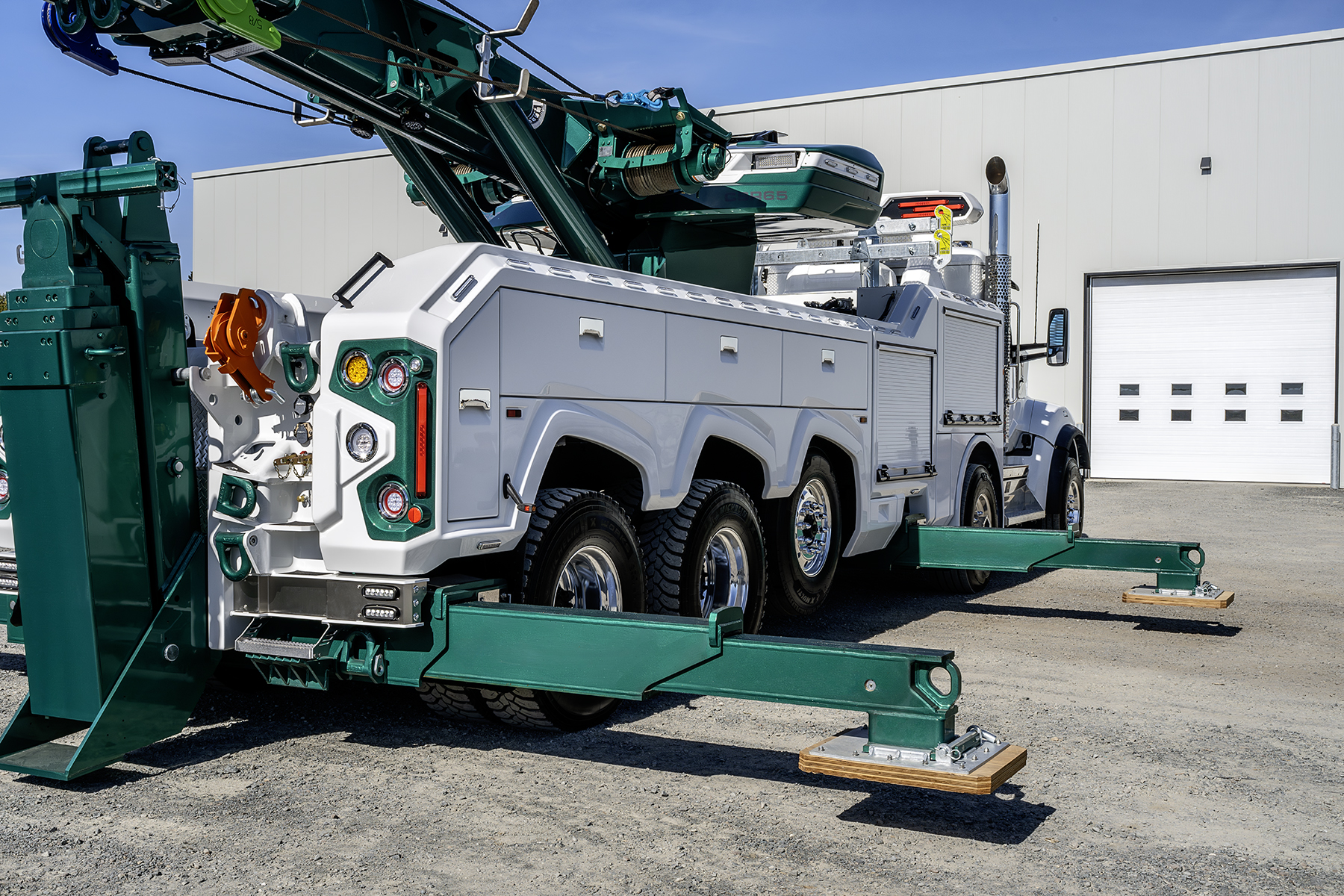

- Low profile 3-stage front and rear outriggers
- Average body weight: 47,000 lb
- Composite body 102” wide (including fenders)
- 3-stage telescopic high-tensile multi-fold boom
- Structural rating fully retracted: 130,000 lb (30° SAE J2512)
- Structural rating fully extended: 28,000 lb (30° SAE J2512)
- Reach past tailgate: 373"
- Maximum working height: 530"
- Range of elevation: 0° - 70°
- 360° sheave head
- D-rings on each boom section
- Dual 50,000 lb 2-speed planetary winches
- Wire ropes: 7/8" x 200'
- Air tensioners
- Air free spool
- Optional: dual 20,000 lb planetary auxiliary winches - 5/8'' x 200' wire ropes
- Optional: 50,000 lb planetary sliding drag winch - 3/4'' x 360' wire rope
- Tri-axle body
- Anodized aluminum roll-up doors
- Stylish monocoque corrosion resistant composite storage cabinets
- Air actuated sliding/rotating locks
- Lock & safety valve on elevation and extension cylinders
- Electronic self-leveling and anti-twist device
- Scale system

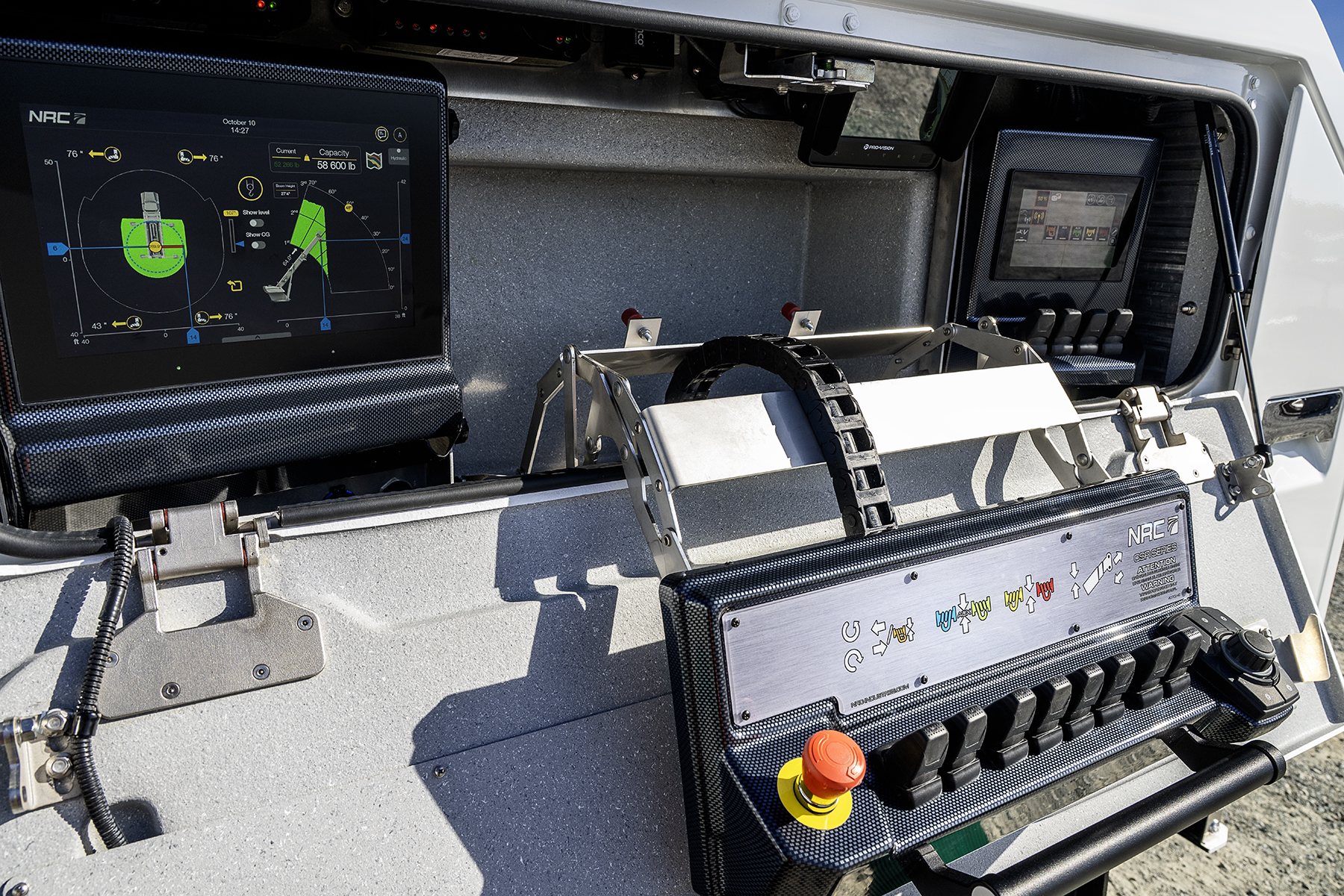

- 12" interactive display information center equipped with Lift-IQ™ and 7" touch screen display for equipment control
- Ergonomic main control station with fully proportional paddle style controls
- Alternate emergency manuals controls
- Vehicle display controller (VDC) mounted on control panel
- Fully proportional remote control with 2 batteries and charger
- 8 button CAN BUS keypad in the cab for lighting control
- Electronic door locks
- Door activated LED compartment lighting
- Quick disconnect underlift hydraulic connector
- Emergency stop switches
- High pressure hydraulic filter
- Threaded lubrication fittings on all moving part
- Tandem axle body
- 3-stage HD/SHD underlift
- 4-stage SHD underlift
- Additional towing attachments
- Heavy duty tire lift
- Composite winch covers
- Large tunnel tool box (44" to 72") (28" to 72" if second tunnel tool box)
- Second tunnel tool box (28" to 72")
- Composite battery box on top of tunnel
- Composite light pylon
- Work lights under the boom (up to 6)
- Work lights on the boom sheave heads (2)
- 2 work lights under the bumper
- Galvanized rigging box
- Lifting beam / spreader bars
- Configurable toolbox organizers
- Installation
- Custom paint
- Live outriggers stance and jack legs measurement for Lift-IQ™
- Automatic slide rails lubrication system
- Front axle: minimum 20,000 lb capacity
- Rear axle: minimum 66,000 lb capacity
- Minimum frame RBM: 4,500,000 in-lb per rail
- Minimum CLA 246” (from cab to center of rearmost axle)
Wrecker specifications
- 65-ton hydraulic sliding-rotating wrecker boom
- 65-ton safe lifting capacity
- 360° continuous rotation
- Low profile 3-stage front and rear outriggers
- Average body weight: 47,000 lb
- Composite body 102” wide (including fenders)
Boom specifications
- 3-stage telescopic high-tensile multi-fold boom
- Structural rating fully retracted: 130,000 lb (30° SAE J2512)
- Structural rating fully extended: 28,000 lb (30° SAE J2512)
- Reach past tailgate: 373"
- Maximum working height: 530"
- Range of elevation: 0° - 70°
- 360° sheave head
- D-rings on each boom section
Winch & cable specifications
- Dual 50,000 lb 2-speed planetary winches
- Wire ropes: 7/8" x 200'
- Air tensioners
- Air free spool
- Optional: dual 20,000 lb planetary auxiliary winches - 5/8'' x 200' wire ropes
- Optional: 50,000 lb planetary sliding drag winch - 3/4'' x 360' wire rope
Standard features
- Tri-axle body
- Anodized aluminum roll-up doors
- Stylish monocoque corrosion resistant composite storage cabinets
- Air actuated sliding/rotating locks
- Lock & safety valve on elevation and extension cylinders
- Electronic self-leveling and anti-twist device
- Scale system
- 12" interactive display information center equipped with Lift-IQ™ and 7" touch screen display for equipment control
- Ergonomic main control station with fully proportional paddle style controls
- Alternate emergency manuals controls
- Vehicle display controller (VDC) mounted on control panel
- Fully proportional remote control with 2 batteries and charger
- 8 button CAN BUS keypad in the cab for lighting control
- Electronic door locks
- Door activated LED compartment lighting
- Quick disconnect underlift hydraulic connector
- Emergency stop switches
- High pressure hydraulic filter
- Threaded lubrication fittings on all moving part
Optional features
- Tandem axle body
- 3-stage HD/SHD underlift
- 4-stage SHD underlift
- Additional towing attachments
- Heavy duty tire lift
- Composite winch covers
- Large tunnel tool box (44" to 72") (28" to 72" if second tunnel tool box)
- Second tunnel tool box (28" to 72")
- Composite battery box on top of tunnel
- Composite light pylon
- Work lights under the boom (up to 6)
- Work lights on the boom sheave heads (2)
- 2 work lights under the bumper
- Galvanized rigging box
- Lifting beam / spreader bars

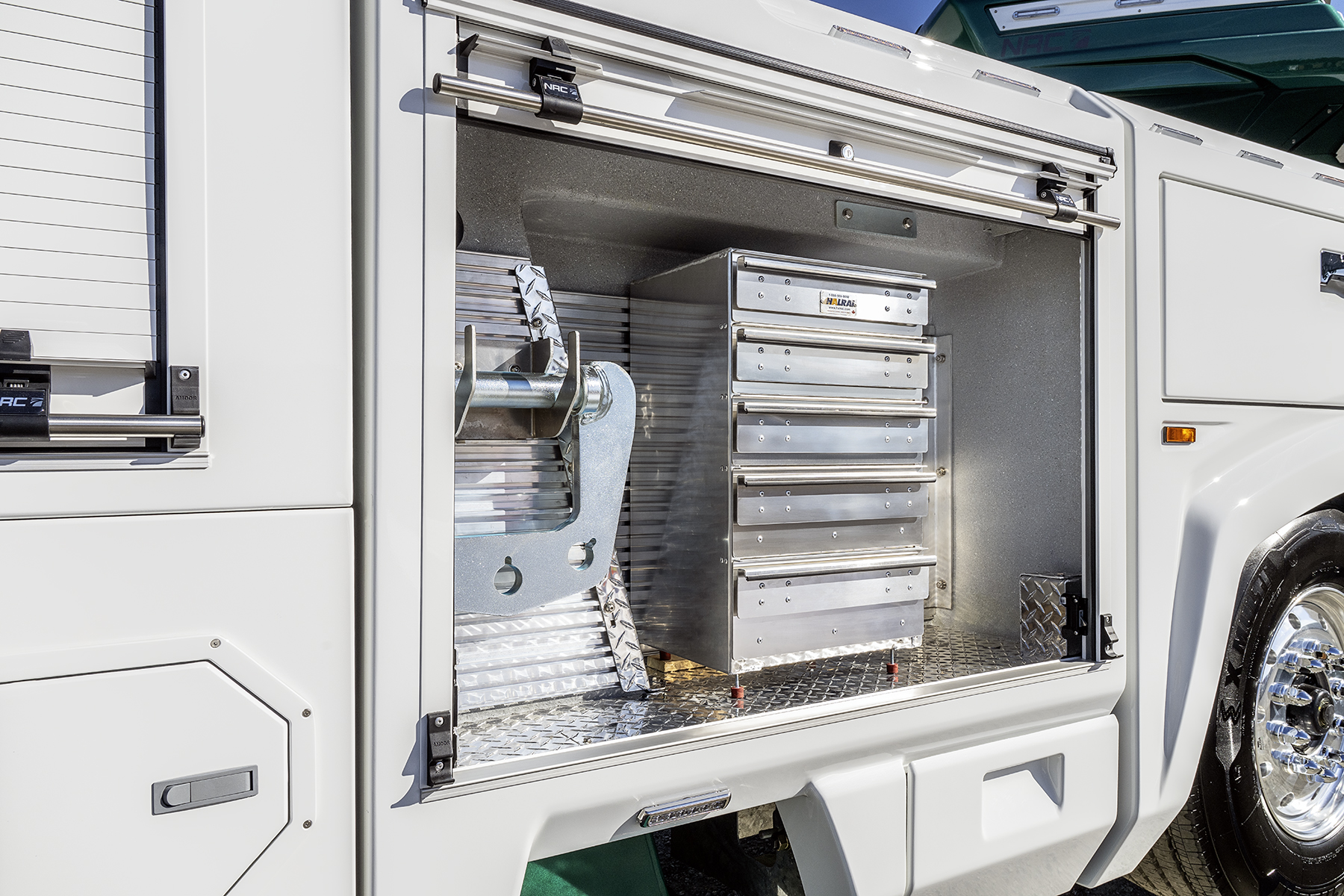

- Configurable toolbox organizers
- Installation
- Custom paint
- Live outriggers stance and jack legs measurement for Lift-IQ™
- Automatic slide rails lubrication system
Chassis requirements
- Front axle: minimum 20,000 lb capacity
- Rear axle: minimum 66,000 lb capacity
- Minimum frame RBM: 4,500,000 in-lb per rail
- Minimum CLA 246” (from cab to center of rearmost axle)
