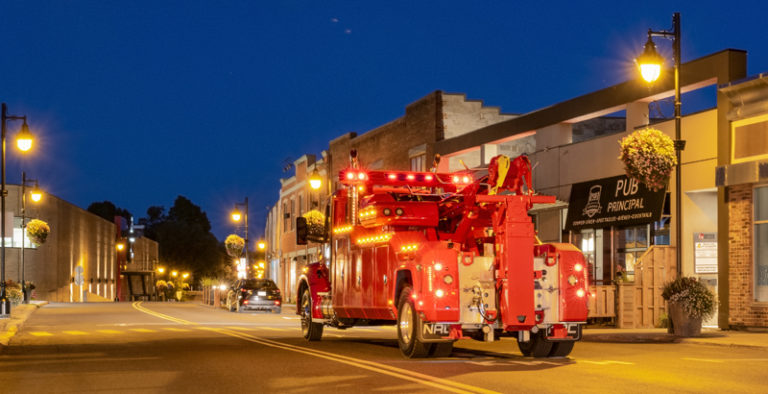

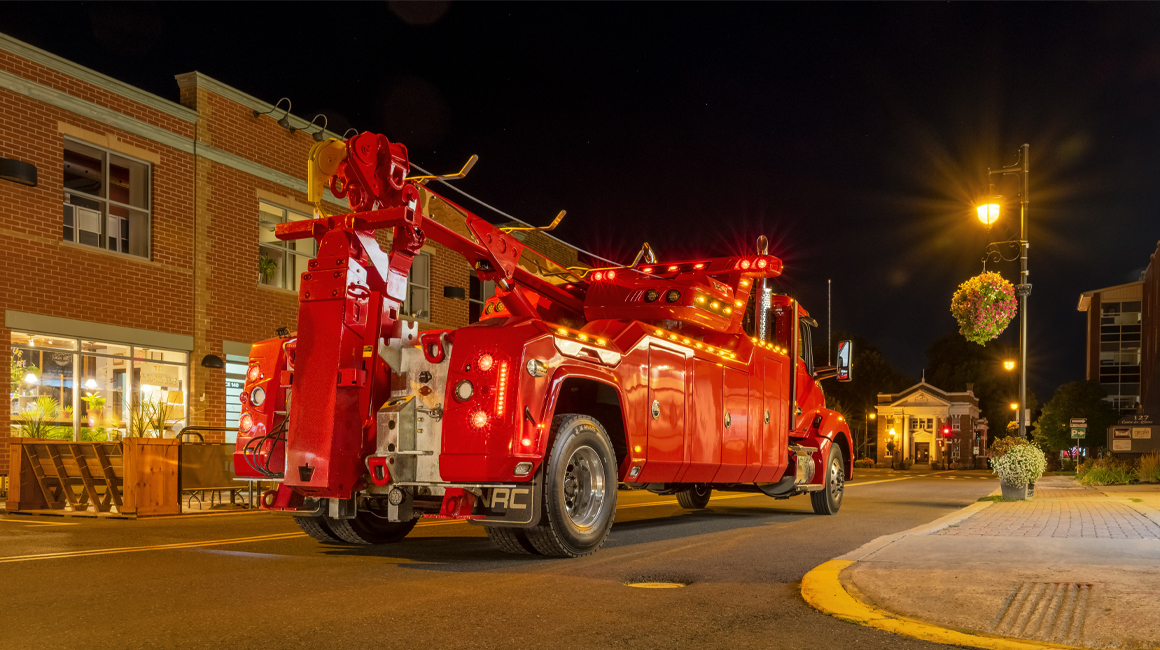

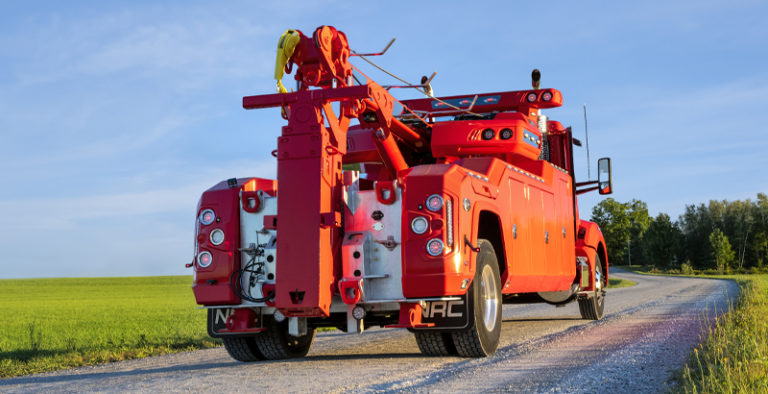

25CS

The perfect urban partner.

What more could you need in a cost-effective and powerful single axle unit? Its stylish, long lasting composite body and Slider System, giving you unmatched recovery capabilities. Make heads turn with the 25CS and put it to work while meeting 25-ton contract requirements with ease.

With the 25CS, you benefit from the power and versatility of the larger Composite Sliders packaged in a smaller, more agile unit. A robust frame translates into a durable and reliable equipment that offers you the payload you need for most recoveries, without sacrificing on fun.

An economic and resistant partner who will be there for you every day, whether for a simple tow, or an accident scene.

  • 25-Ton Rated lifting capacity
  • 73'' Sliding recovery boom
  • Working hydraulic pressure 3000 PSI
  • Composite body 100'' wide (including fenders)
  • 2-stage recovery boom
  • Boom structural rating fully retracted: 50,000 lbs
  • Boom structural rating fully extended: 20,000 lbs
  • Reach past tailgate: 167"
  • Maximum Boom working height: 272"
  • Range of elevation : 0° - 55°
  • 360° sheave head
  • Dual 25,000lbs planetary winches
  • 5/8” x 200’ wire ropes
  • Air tensioners
  • Air free spool
  • Optional: 2 speed winches
  • Single axle body
  • Stylish monocoque corrosion resistant composite storage cabinets
  • Air actuated sliding locks
  • Lock & safety valve on elevation and extension cylinders

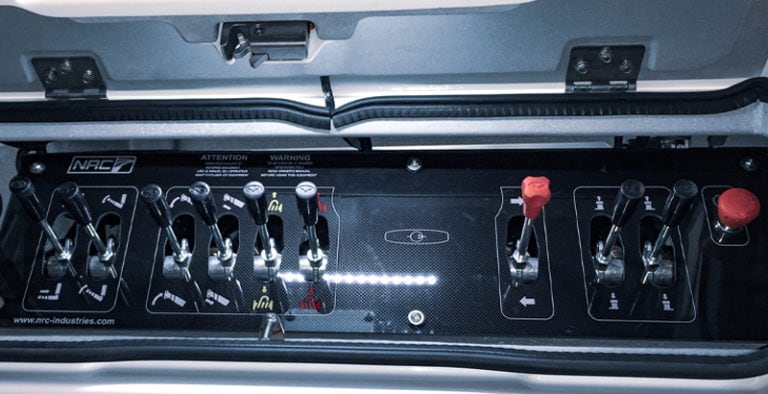

  • Dual hydraulic controls with lighting
  • Electric switches with rear controls
  • 6 button wireless remote control
  • 6 button CAN BUS keypad in the cab for lighting control
  • Removable spades
  • Rear mounted recovery anchors
  • Mud flaps
  • LED Lights
  • Modular Fork and accessory holders
  • Emergency stop switches
  • Epoxy primer
  • Anodized aluminium roll-up doors

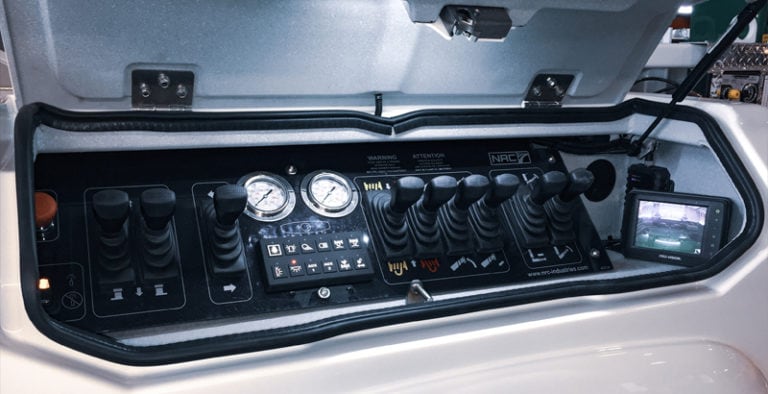

  • Proportional joysticks at main control station
  • Fully proportional remote control with 2 batteries and charger
  • 10/14-button wireless remote control
  • 5" color touch screen
  • Scale system
  • "L" shaped mounting plates 3/8"
  • 3-stage HD Underlift
  • Composite winch covers
  • Large tunnel tool box (28" to 72")
  • Composite battery box on top of tunnel
  • Composite light pylon
  • Work lights under the boom (1)
  • 2 work lights under the bumper
  • Stainless docking lights

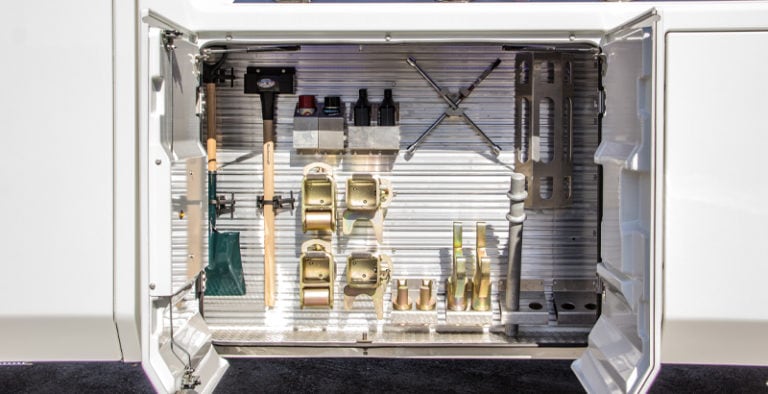

  • Configurable toolbox organizers
  • Stainless dress-up kit
  • Installation
  • Custom paint
  • Front Axle : Minimum 12,000 lbs capacity
  • Rear Axle : Minimum 21,000 lbs capacity
  • Minimum frame RBM: 2,750,000 in.lbs per rail
  • Minimum CLA 140" (from cab to center of rear axle)
