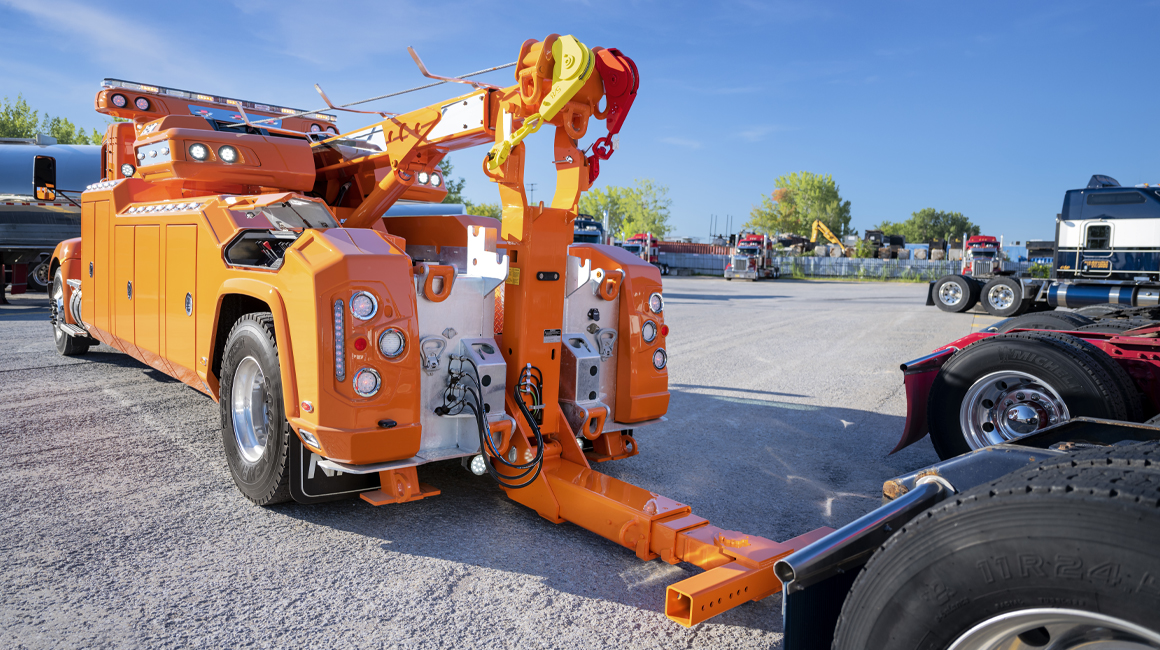

20CS

Small, but mighty.

No need to sacrifice performance for size, or pass up on smaller jobs. The 20CS is light, agile and strong ; the perfect recruit to conquer new markets. The Slider System offers unmatched payload, while the smaller size of th 20CS means incredible maneuverability and versatility.

Surprisingly easy to handle, the 20CS shines in the harshest urban conditions. This work-beast is built small enough for narrow roads, yet strong enough to never let you down. Towing heavy vehicles in urban areas? No problem.

Maximum performance, astonishing versatility and reduced maintenance costs, all combined into a stylish composite body. We’ve built your newest business partner.

  • 20-Ton Rated lifting capacity
  • 73'' Sliding recovery boom
  • Working hydraulic pressure 3000 PSI
  • Composite body 100'' wide (including fenders)
  • 2-stage recovery boom
  • Boom structural rating fully retracted: 40,000 lbs
  • Boom structural rating fully extended: 15,000 lbs
  • Reach past tailgate: 147"
  • Maximum Boom working height: 256"
  • Range of elevation : 0° - 55°
  • 360° sheave head
  • Dual 20,000 lbs planetary winches
  • 5/8” x 200’ wire ropes
  • Air tensioners
  • Air free spools
  • Optional: 2-speed winches
  • Single axle body
  • Stylish monocoque corrosion resistant composite storage cabinets
  • Air actuated sliding locks
  • Lock & safety valve on elevation and extension cylinders

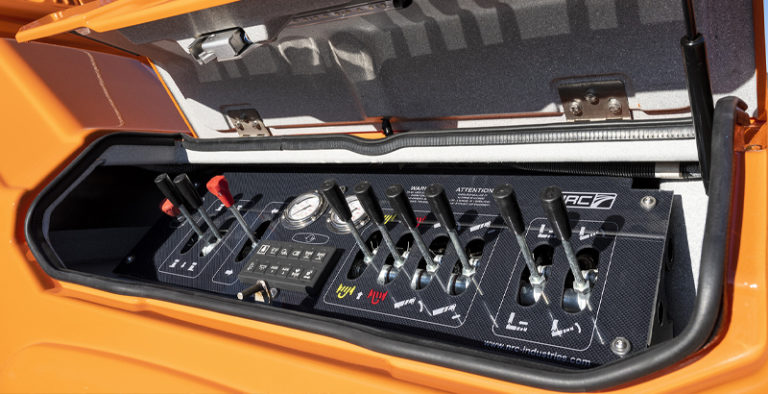

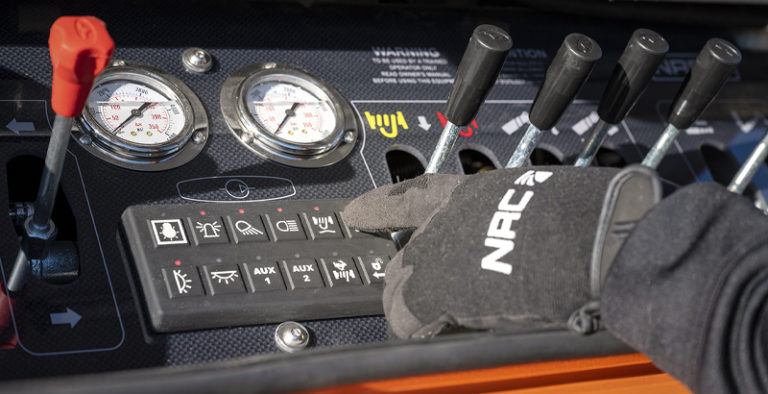

  • Dual hydraulic controls with lighting
  • Electric switches with rear controls
  • 6 button wireless remote control
  • 6 button CAN BUS keypad in the cab for lighting control
  • Removable spades
  • Rear mounted recovery anchors
  • Mud flaps

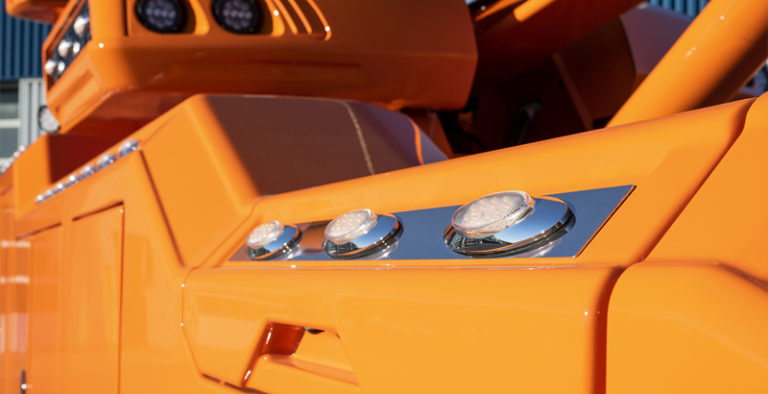

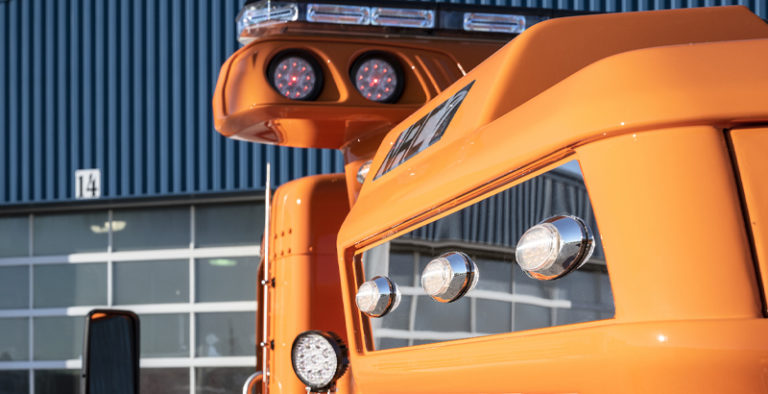

  • LED Lights
  • Modular Fork and accessory holders
  • Emergency stop switches
  • Epoxy primer
  • Anodized aluminium roll-up doors
  • Proportional joysticks at main control station
  • Fully proportional remote control with 2 batteries and charger
  • 10/14-button wireless remote control
  • 5" color touch screen
  • Scale system
  • "L" shaped mounting plates 3/8"
  • 3-stage HD Underlift
  • Composite winch covers
  • Large tunnel tool box (28" to 72")
  • Composite battery box on top of tunnel
  • Composite light pylon

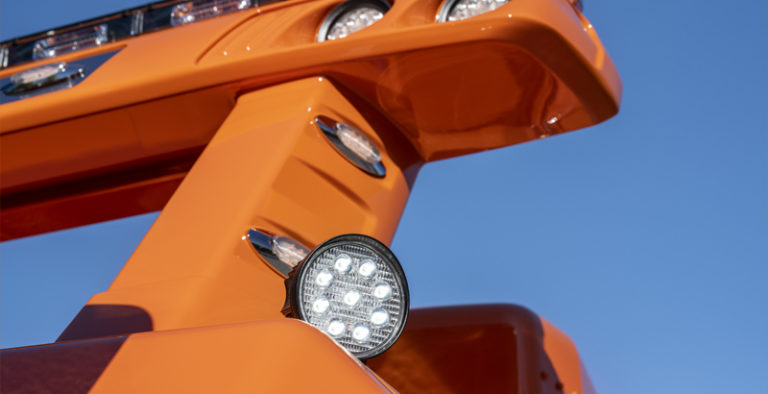

  • Work lights under the boom (1)
  • Stainless docking lights
  • Configurable toolbox organizers
  • Stainless dress-up kit
  • Installation
  • Custom paint
  • Front Axle : Minimum 10,000 lbs capacity
  • Rear Axle : Minimum 20,000 lbs capacity
  • Minimum frame RBM: 2,150,000 in.lbs per rail
  • Minimum CLA 140" (from cab to center of rear axle)
